MiniHexa

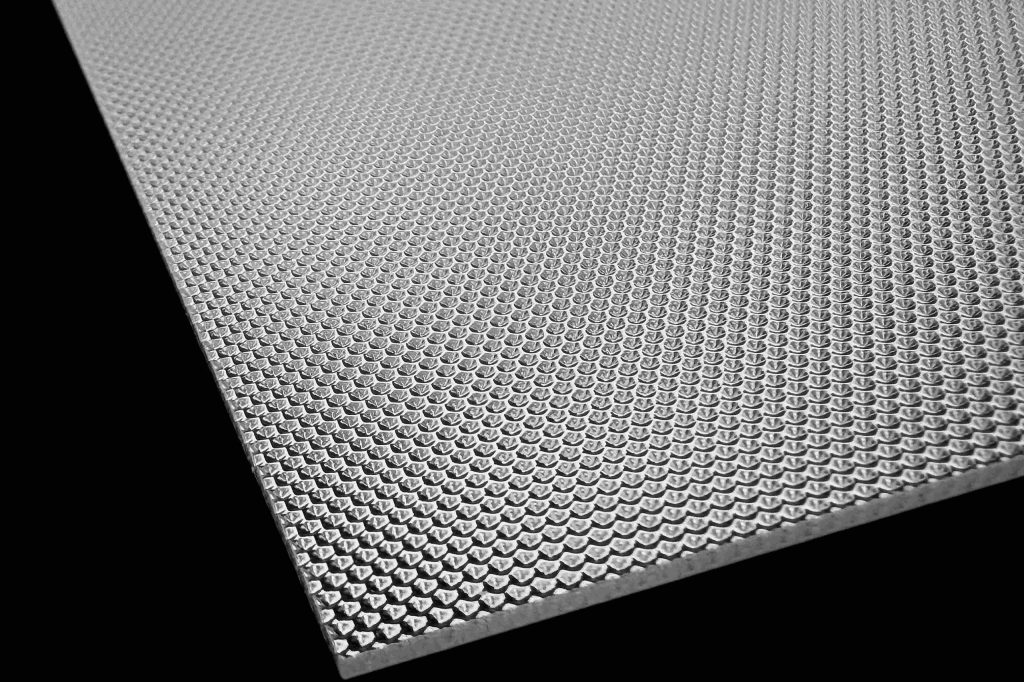

The MiniHexa Series features concave mini hexagonal microprisms, engineered for advanced glare suppression and visual comfort in compact and high-luminance LED luminaires.
By reducing individual prism cell size and utilizing a concave geometry, MiniHexa optics provide refined luminance control, smoother visual appearance, and improved performance with dense LED arrays.

Available in PMMA (Acrylic) and Polycarbonate (PC), the MiniHexa Series is optimized for applications requiring UGR<19 compliance, minimal sparkle, and enhanced compatibility with short LED-to-optic distances.

Certifications

Request a Data Sheet or Certification

View 3D Model

Products Comparison

Product Code	Material	Light Transmission (%)	Fire Rating	Thickness Range (mm) mmin	Key Features	Applications

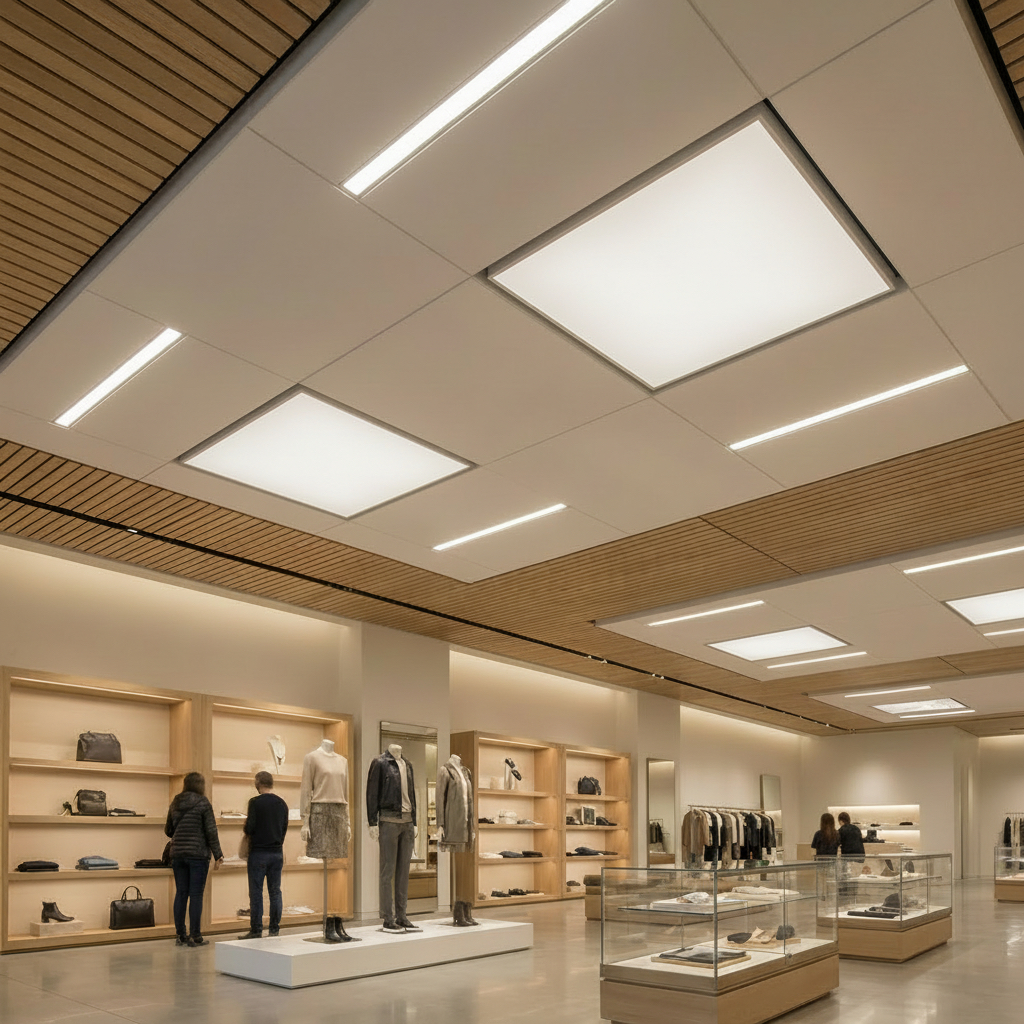

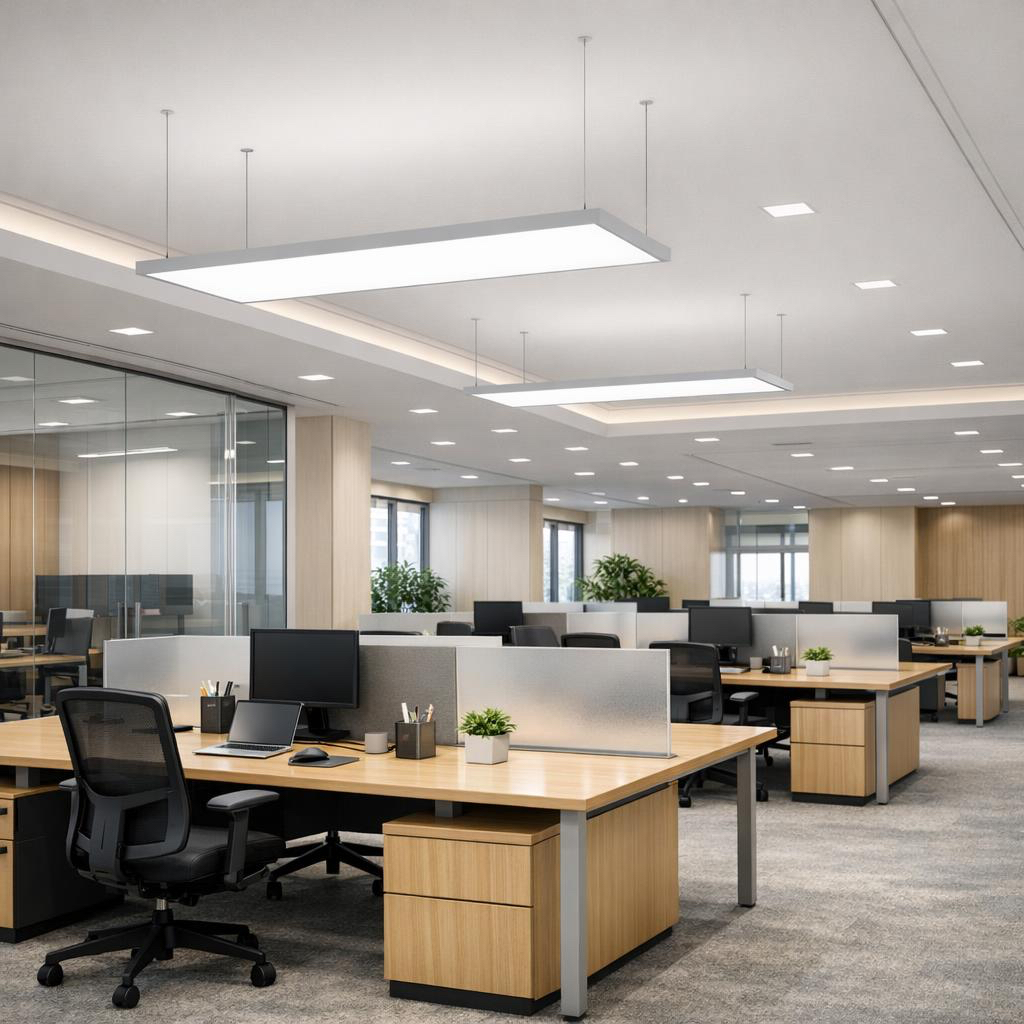

Plexi MiniHexa	PMMA (Acrylic)	94%	UL94 HB	1.5	Very high clarity, fine glare control, excellent surface uniformity	Offices, architectural luminaires, education, commercial LED
Poly MiniHexa	Polystyrene (PS)	90%	UL94 HB	1.2	Cost-effective, thin profile, good UGR control, easy processing	Offices, architectural luminaires, education, and commercial LED

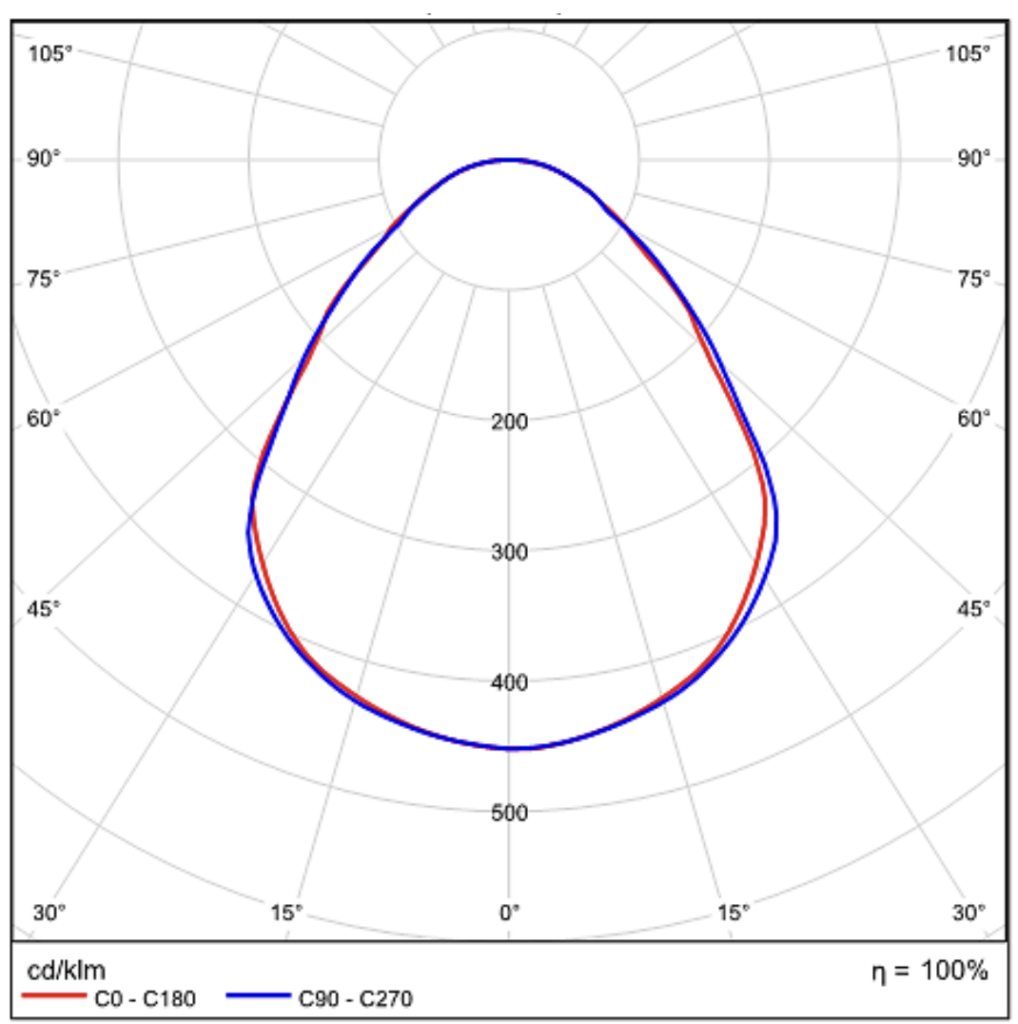

Photometric Data

Mini Hexagon Geometry Benefits

The concave mini hexagonal prism geometry enables precise control of high-angle luminance while maintaining uniform brightness across the emitting surface.

Key geometric advantages:

Concave micro-facets redirect high-angle light inward, reducing direct glare at critical viewing angles

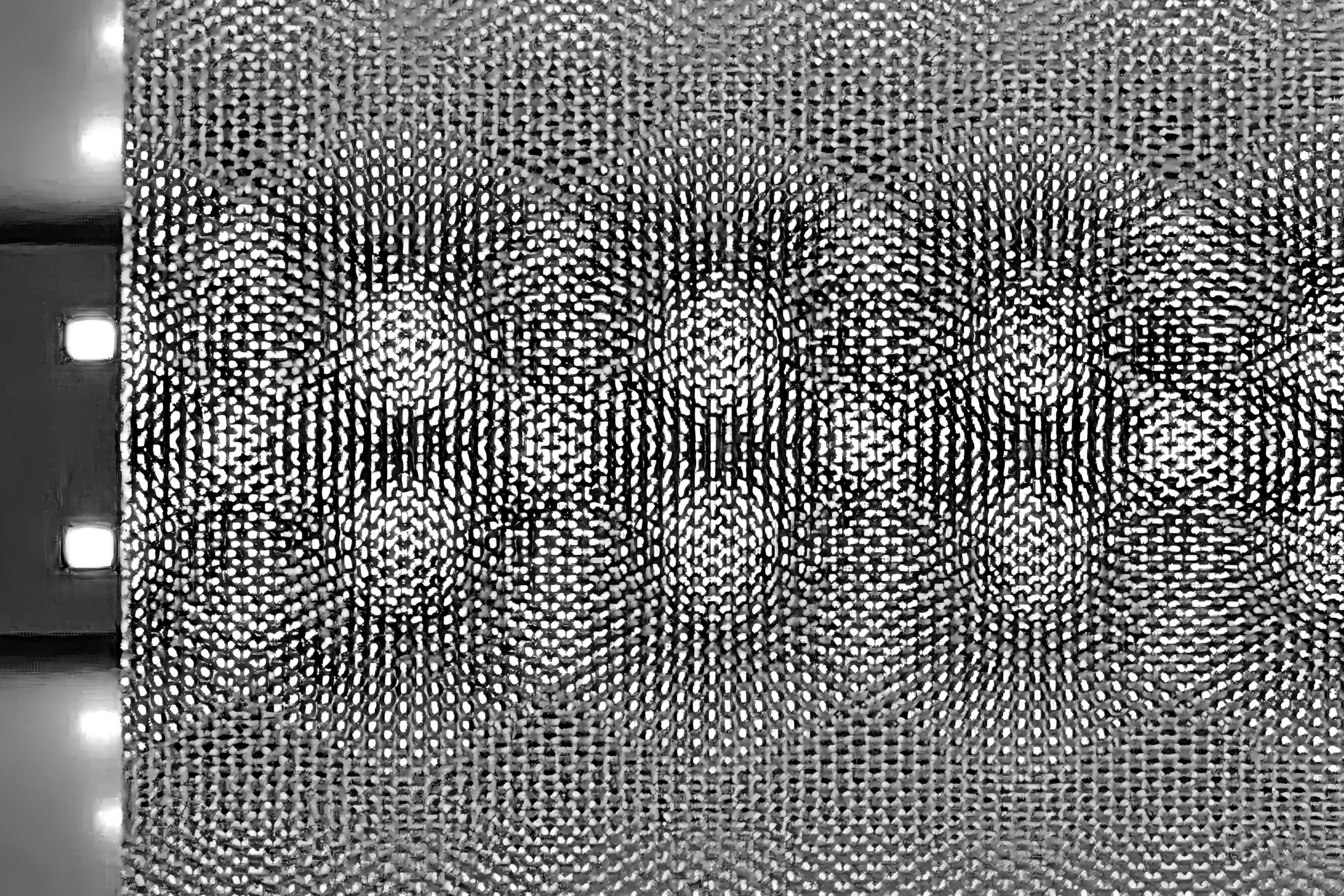

Miniaturized hexagonal cells improve luminance smoothness and reduce visible prism patterning
Isotropic light control ensures a uniform appearance from multiple viewing directions
Enhanced LED pitch tolerance, ideal for dense and high-power LED arrays
Lower sparkle and facet visibility compared to larger convex prism structures
High optical efficiency with controlled refraction rather than diffuse scattering

This geometry is especially effective where visual comfort and refined aesthetics are critical.
