Hexagon

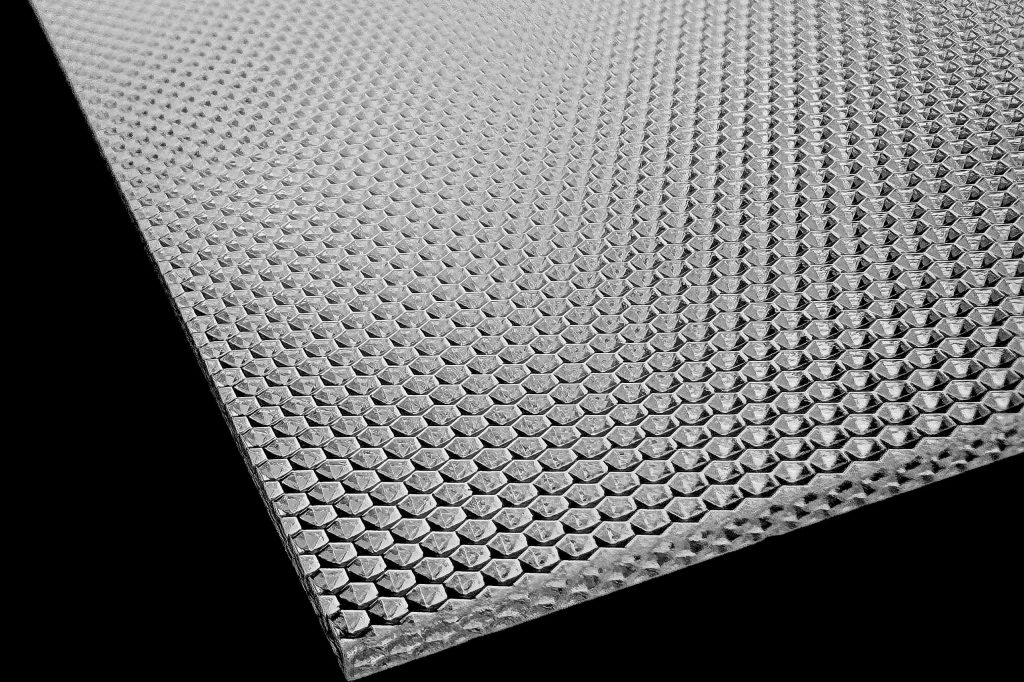

The Hexagon series features a symmetrical hexagonal microprismatic structure engineered for multi-directional glare control and uniform luminance. Its refined prism geometry delivers smooth light distribution with reduced sparkle, making it ideal for premium architectural and commercial luminaires.
- Clean Visual Appearance: Smooth surface with reduced sparkle.
- Stable Thin-Sheet Structure: Strong geometry for thin films and sheets.
- Multi-axis Glare Control: Balanced cutoff in all directions.
- High Optical Efficiency: Minimal dead zones for maximum output.
- UGR < 19 Compliant: Designed for glare-sensitive environments.
Certifications
Products Comparison
| Product Code | Material | Thickness mmin | Light Transmission | Fire Rating | Key Features | Thickness in mmin |
|---|---|---|---|---|---|---|
| Plexi Hexagon | Acrylic (PMMA) | 1.2, 1.5, 2 & 3 | 94% | UL94 HB | Highest optical clarity, UV-stable | 0.047, 0.059, 0.078 & 0.118 |
| S Hexagon | Polystyrene (PS) | 1.2, 1.5, 2 & 3 | 94% | UL94 HB | Cost-effective, lightweight | 0.059, 0.078 & 0.118 |
| S Hexagon TP(a) | Polystyrene(PS) | 1.2, 1.5, 2 & 3 | 94% | TP(a) | Improved fire resistance vs. standard PS | 0.059, 0.078 & 0.118 |
| Poly Hexagon | Polycarbonate (PC) | 1, 1.2, 1.5 & 2 | 90% | UL94 V2 | Impact-resistant, higher fire ratings |

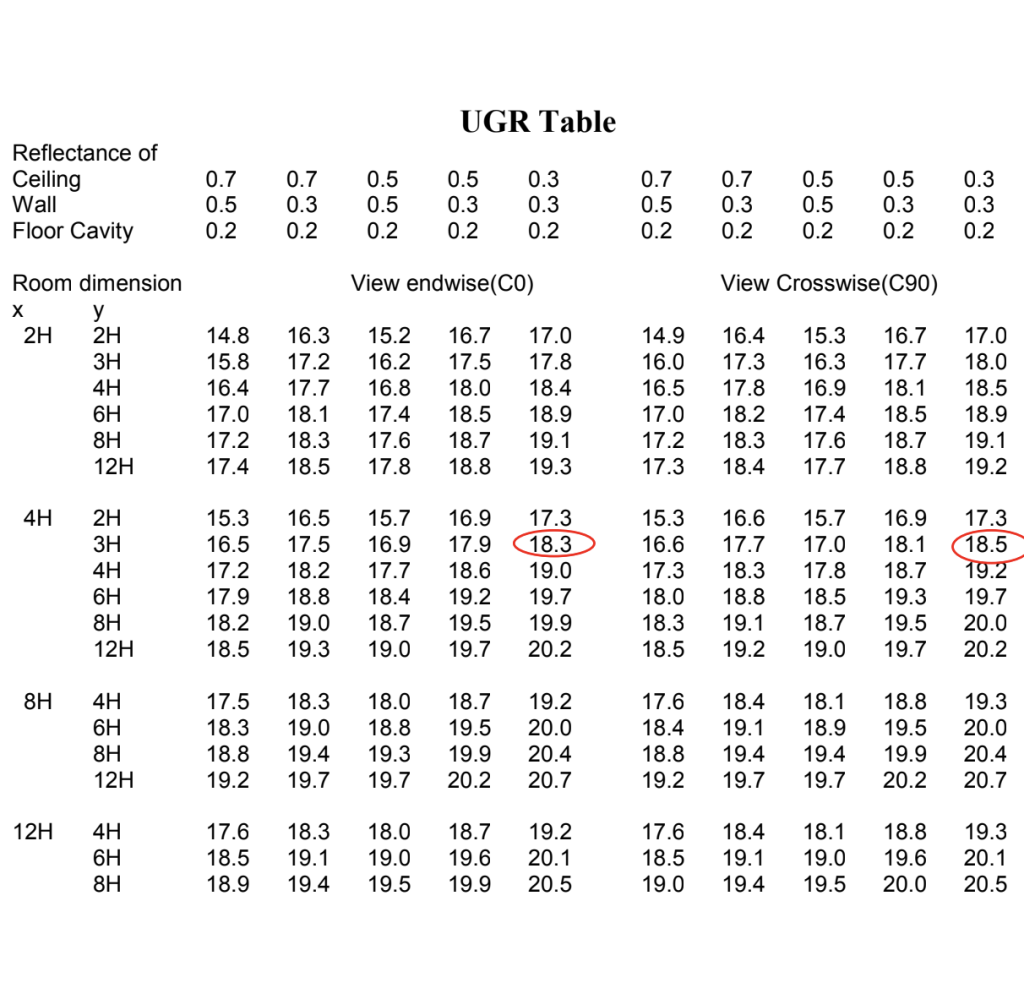

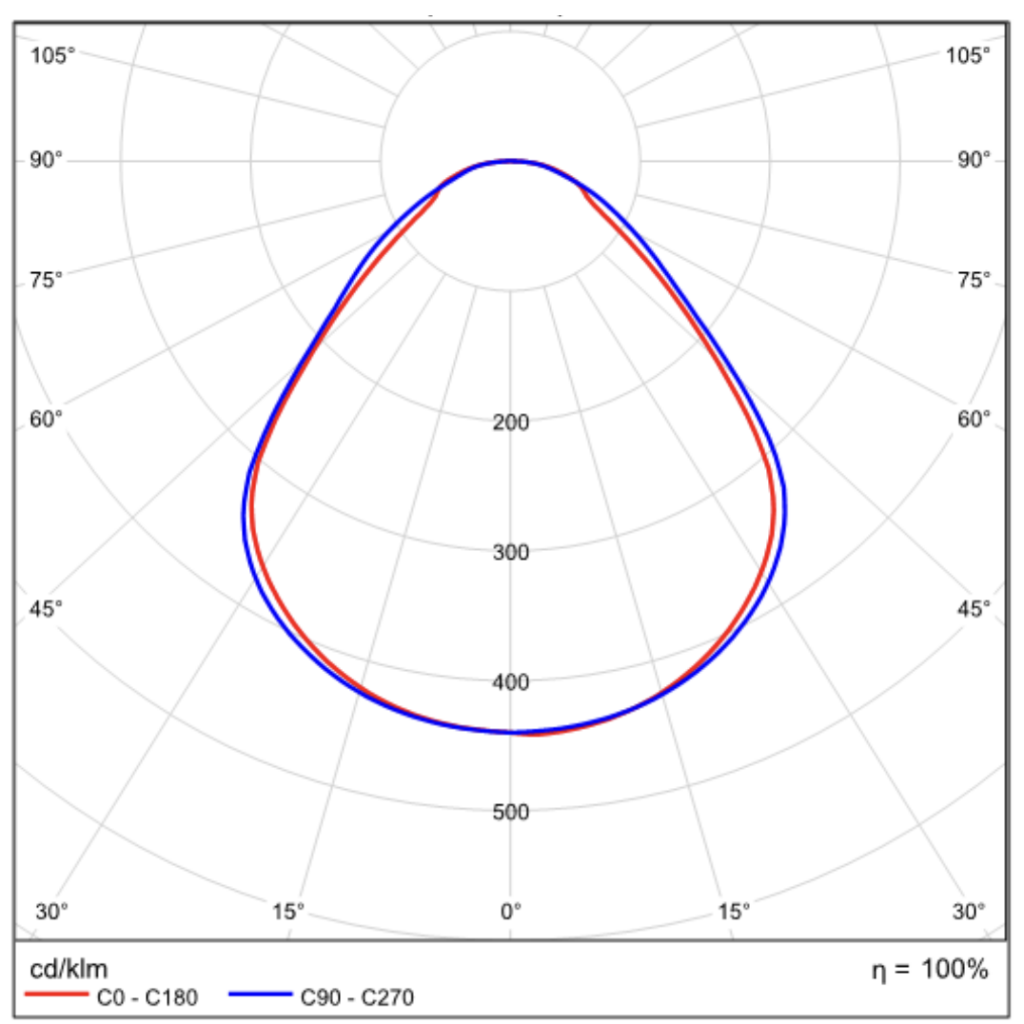

Photometric Data
Optical Performance & Refraction
Geometric Activation

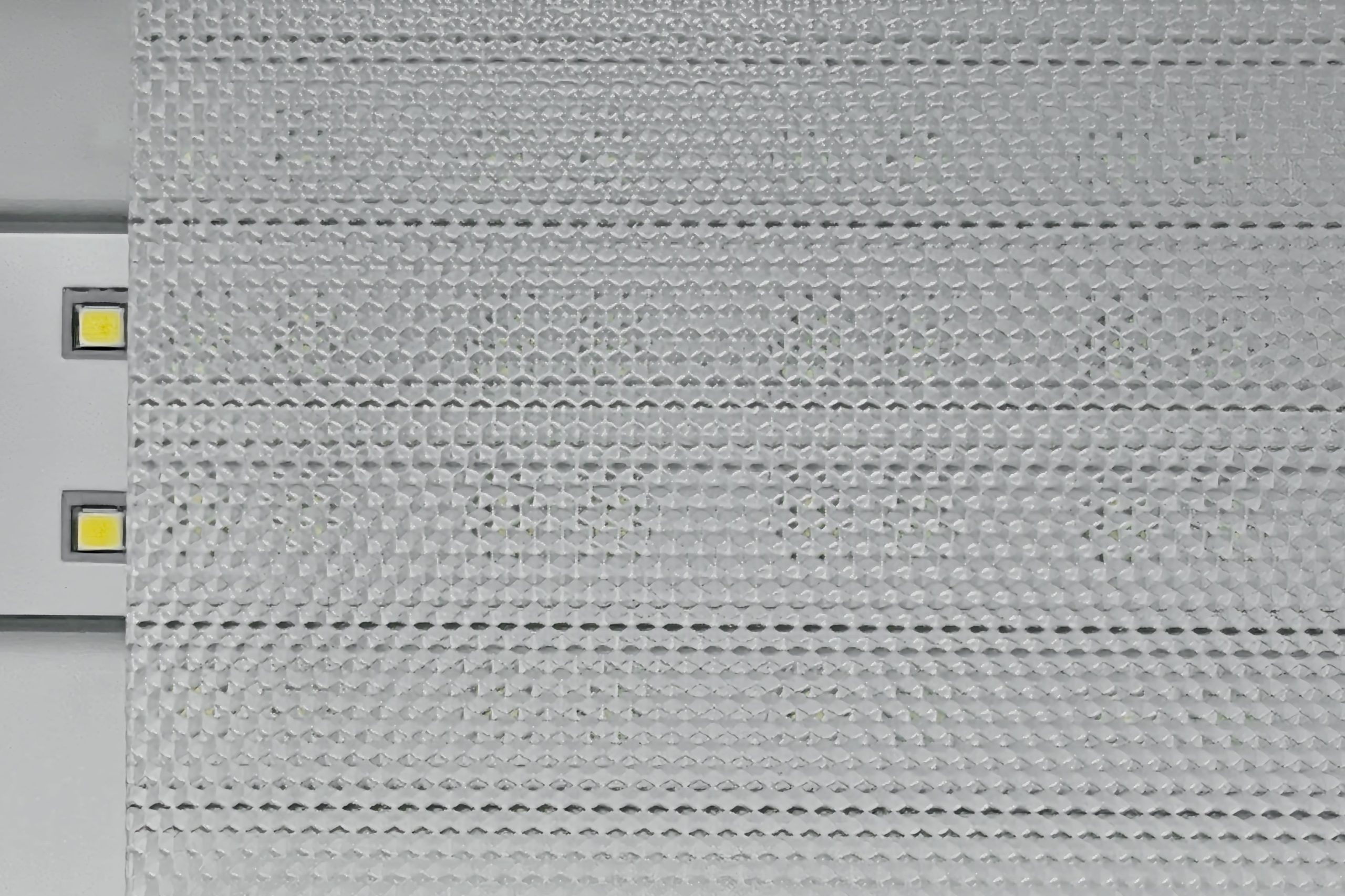

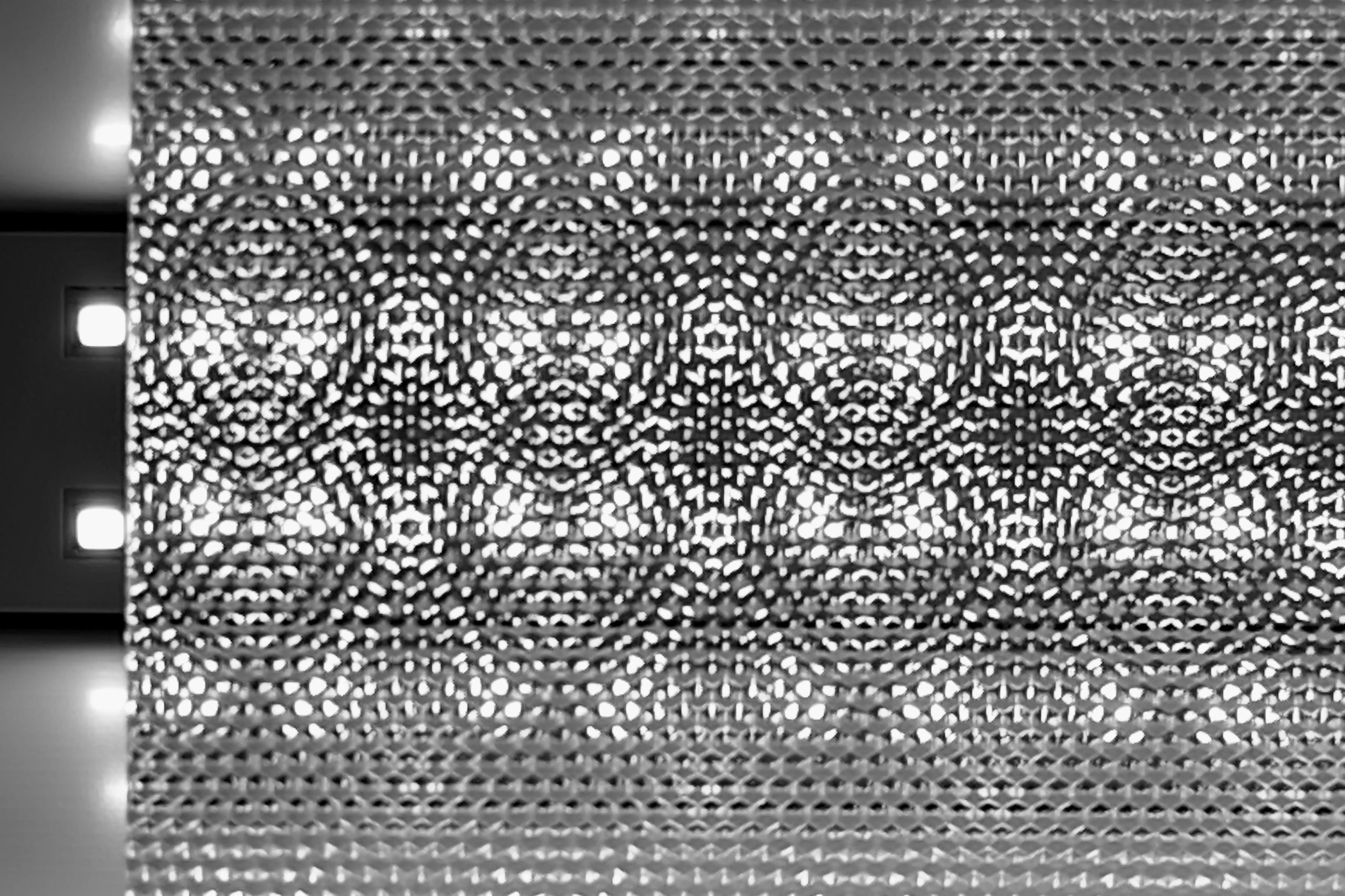

Notice how the hexagonal prisms ‘engage’ upon illumination. Each convex cell captures raw, uncontrolled LED output and redirects it into the useful task plane, physically suppressing high-angle glare to achieve UGR <19 compliance.

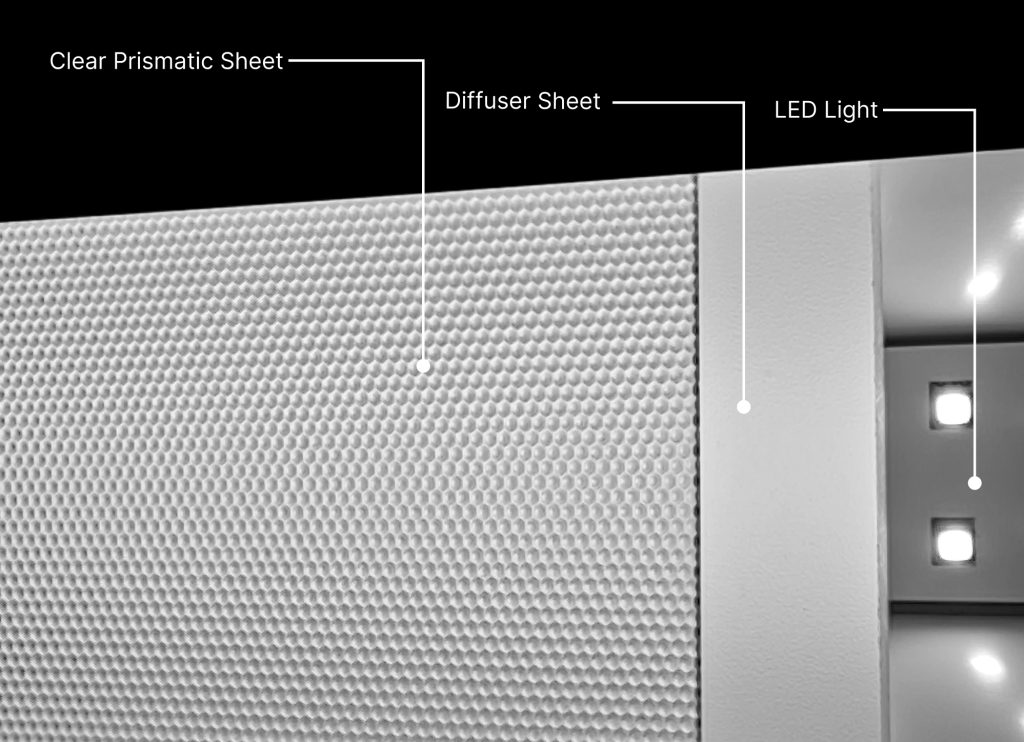

The UGR<19 optical stack delivers a consistent diffusion across the panel:
- Microprismatic sheet +
- Diffuser film/sheet
Applications
More Information
Applications of UGR<19 Sheets
- Workplaces requiring screen-based task lighting (computer work, design studios)
- Office lighting (open-plan offices, meeting rooms)
- Schools and universities (classrooms, libraries, study halls)
- Healthcare facilities (hospitals, clinics, laboratories)
- Public buildings (airports, museums, government offices)
- Commercial lighting (retail stores, shopping malls)
- Architectural lighting (modern interior designs, co-working spaces)
- High-end residential (kitchens, study rooms, home offices)
Available Widths and Lengths
The standard sheet width is 1220 mm. For special projects, the extrusion width can be adjusted up to a maximum of 1250 mm upon request.
Our standard lengths are 1220 mm, 1830 mm, 2440 mm, and 3050 mm. Custom lengths can also be produced upon request to suit your specific needs.
Custom Cutting, Machining & Fabrication
We provide complete processing services to deliver prismatic sheets in the exact size and finish you need, from simple cuts to precision machining.
Available options include:
- Milling to create steps, grooves, or custom profiles
- CNC machining for precise shapes and patterns
- Laser cutting for smooth edges and complex geometries (up to 1300×1300mm)
- Saw cutting for standard sizing and trimming.
- Bonding and assembly of multiple sheet layers
- Edge finishing with chamfers, bevels, and rounded edges
Saw cutting capability: Up to 3050mm long and >30mm wide.
Tolerances:
L：±1mm
W：+0.6 / -0mm (Unilateral Plus) or +0 / -0.6mm (unilateral minus)
Materials: Comparison of PMMA, PC, and PS
Use this comparison table to quickly understand the differences and find the best option for your lighting project.
| Property / Feature | PMMA (Acrylic) | PC (Polycarbonate) | PS (Polystyrene) |
|---|---|---|---|
| Light Transmission | Very high | High | High |
| Impact Resistance | Low – brittle, can crack under stress | Very high – shatter-resistant | Low – brittle |
| Heat Resistance (Continuous Use) | 80–90°C | 120°C | 70°C |
| Maximum Short-Term Heat | ~100°C | ~135°C | ~80°C |
| UV Resistance / Weathering | Good (can yellow over long-term) | Moderate UV stability (However we add UV stabilizer) | Fair (Prone to yellowing)However we add UV stabilizer. |
| Flammability / Safety | Moderate (UL94 HB) | Better (UL94 V-2/V-0 with additives) | Moderate (UL94 HB) |
| Chemical Resistance | Good (resistant to mild acids/alkalis) | Excellent – resists most chemicals | Poor – sensitive to solvents |
| Weight / Density | 1.18 g/cm³ | 1.2 g/cm³ | 1.05 g/cm³ |
| Processing / Fabrication | Thermoforming, laser cutting, CNC. | Good for thermoforming, no laser cutting, CNC. | CNC. |
| Cost | Medium | High | Low |
| Durability / Lifespan | Moderate – good indoor use | Very high – suitable for harsh/industrial environments | Fair – medium-term indoor use |
| Common Applications | Office LED panels | Industrial/warehouse lighting, outdoor luminaires, impact-prone areas | Cost sensitive projects |
Product Tolerances
The three materials (PMMA, PC and PS) have similar tolerances.
| Property | Value |
| Thickness | ±3% |
| Mother board Length / Width | ±3.0 mm |
| Cut-to-Size Length / Width | ±0.3 mm |
| Light Transmittance & Haze | ±2% |
Note: PMMA has the highest thermal expansion coefficient among diffuser materials. This means it can expand in hot conditions and contract in cold conditions. Use our Thermal Expansion Calculator to predict the final dimensions before installation.
Packing
At Hexatron Technologies, we take great care in packing our diffuser sheets to ensure they reach our customers in perfect condition.
1. Standard Sheet Packing
- Mother Sheets: Large sheets (up to standard extrusion sizes) are stacked on pallets or crates.
- Final Cut / Cut-to-Size Sheets: Smaller sheets are carefully wrapped and separated with protective films or kraft paper, then bundled to avoid bending or warping.
2. Protection Methods
- Surface Protection Film: All diffuser sheets are supplied with a removable protective film to prevent scratches and contamination.
- Edge Guards / Corner Protectors: To prevent chipping or denting during handling and shipping.
3. Palletization & Securing
- Sheets are stacked on pallets or crates with interleaving layers and secured with straps or stretch film to prevent movement during transit.
- Maximum stack height is calculated based on sheet thickness and material to avoid warping or deformation. A pallet of 1.5 tons is the maximum weight.
4. Shipping & Handling Recommendations
- Flat Storage: Sheets should be stored flat and supported evenly to maintain flatness.
- Climate Considerations: Avoid prolonged exposure to extreme temperatures or humidity, especially for PMMA, to prevent dimensional changes.
- Handling: Use gloves when removing protective film to prevent fingerprints.
