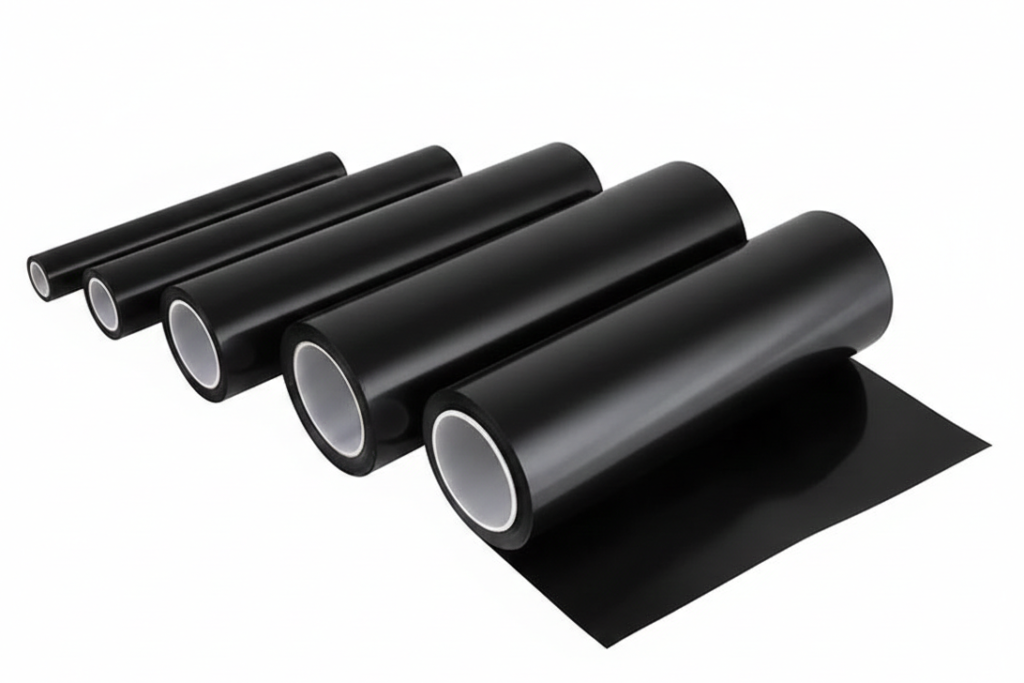

Light Blocking Films
Product Details:
- Material: Black PET
- Thickness Range: 100 – 250 μm
- Light Transmittance: 0%
- Roll Sizes: Standard width: 1000 mm and 1090 mm. Length range 100 to 1000 meters
- Surface: Matte finish
- Electrical Properties: Electrical Insulation
- Optical Properties: Light Shielding
- Additional Applications: Electrical Insulation
Description
These films are used in electronics applications requiring total light isolation. Delivers 100% light blockage across the visible spectrum, eliminating unwanted light transmission that can interfere with displays, sensors, LEDs, and imaging systems.
Made from durable, flexible PET (Polyethylene Terephthalate), it provides excellent tear resistance, easy handling, and compatibility with standard cutting tools. Available in rolls or custom-cut sizes, with or without back adhesive.
Ideal for smart devices, automotive electronics, and precision instruments.
| Product Code | Material | Thickness (μm) mmin | Thickness (in.) mmin | Color |
|---|---|---|---|---|
| Eclipse100 | PET | 100 | 0.003 | Black |
| Eclipse250 | PET | 250 | 0.009 | Black |
Special thicknesses are available upon request, including 50, 75, 125, 150, and 188 μm.
We offer custom cutting to any shape required, along with the option to apply a back adhesive to suit your specific applications.
More Information
Custom Cutting & Fabrication
- Precision Slitting & Rewinding: High-tolerance slitting of materials to custom dimensions, including narrow capabilities down to a minimum width of 14mm. Finished products can be supplied as coils or reels.
- High-Volume Converting: Efficient roll-to-sheet converting tailored for mass production and streamlined inventory management.
- Custom Fabrication: Precision kiss-cutting, score lines, and perforated designs engineered for easy assembly and reduced labor time.
- Specialized Thermoforming: Advanced thermoforming of Polycarbonate reflectors to achieve complex shapes and optimal light direction.
- Adhesive Application: Professional heat transfer double-sided tape mounting for secure, permanent bonding during final installation.
Value-Added Services: Sampling with complex shapes without mold fee.
Materials: Comparison of PET vs PC White Reflector Films
Use this comparison table to quickly understand the differences and find the best option for your lighting project.
| Property / Feature | PET (Polyethylene Terephthalate) White Reflector | PC (Polycarbonate) White Reflector |
|---|---|---|
| Thermal Resistance | Up to ~120 °C | Up to ~140–150 °C |
| Impact Resistance | Moderate | High |
| Chemical Resistance | Good (resists many solvents) | Good, slightly more sensitive to some solvents |
| Flexibility | Good for thin sheets | Slightly stiffer at same thickness |
| Die-cutting / punching | Easy, precise | Easy, slightly tougher |
Product Tolerances
| Property | Value |
| Thickness | ±3% |
| Cut-to-Size Length / Width | ±0.3 mm |
| Reflectance Rate | ±2% |
| Light Transmittance & Haze | ±3% |
| Light Blocking Optical Density (OD) variation | ±0.1 |
Packing
1. Standard Packing Options
- Rolls:

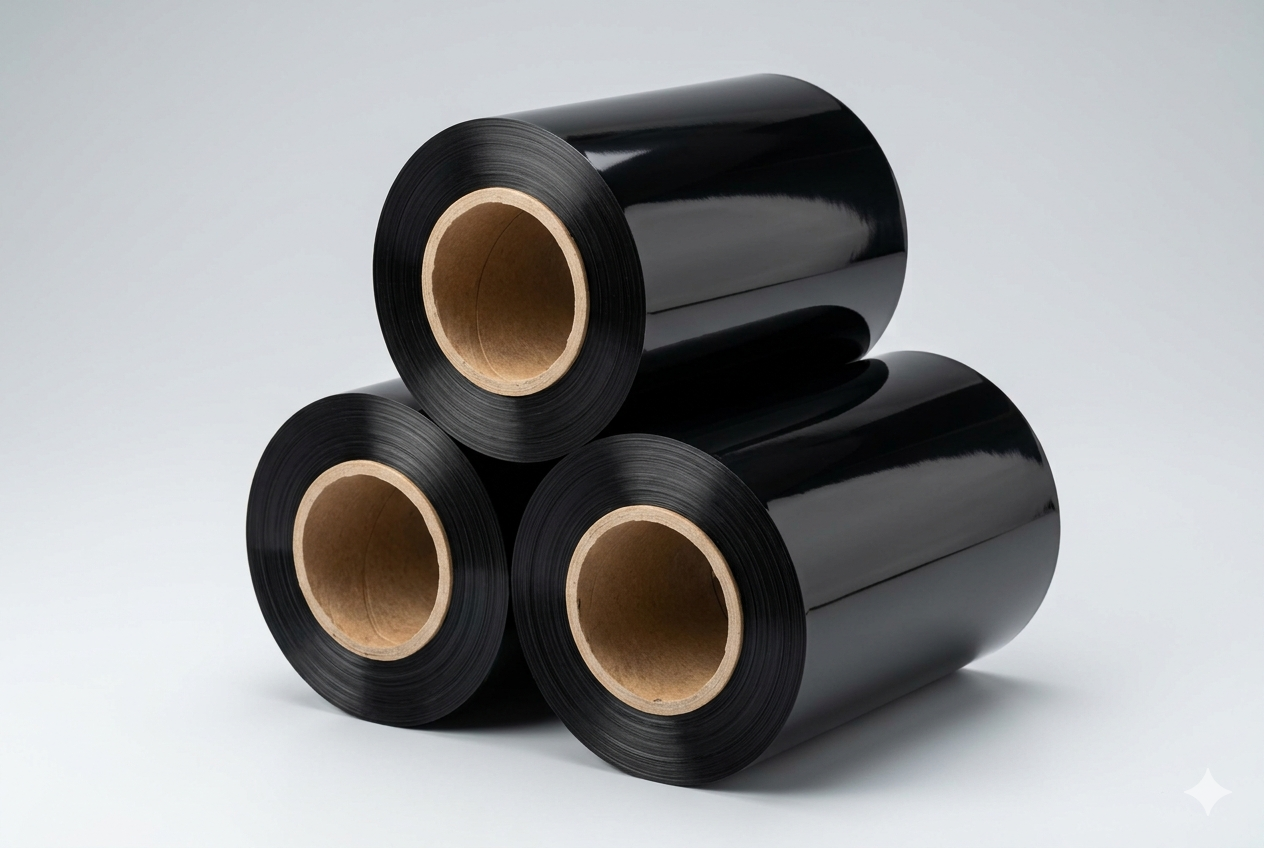

Optical films are rolled on anti-static paper or plastic cores (6″) and tightly wound with protective liners to prevent telescoping and dust contamination.
Each roll is packed in a reinforced carton or crate for safe shipment. - Final Cut / Sheet Sizes:
Cut-to-size films are individually interleaved with protective films or kraft paper and stacked flat to prevent scratches, bending, or warping during transit.
2. Surface & Edge Protection
- Edge & Corner Protection:
Roll edges and sheet corners are secured with foam guards or plastic protectors to prevent damage from handling or vibration during shipping.
3. Palletization & Securing
- Rolls and flat stacks are palletized or crated.
- Straps, shrink wrap, and corner reinforcements keep materials stable throughout transit.
- Maximum pallet load: 800 kilograms or as specified per film thickness to prevent compression or deformation.
4. Shipping & Storage Recommendations
- Flat Storage:
Store cut-size films on a flat, clean surface, avoiding uneven pressure. - Roll Storage:
Store rolls upright on cores or suspended horizontally to prevent deformation and edge curling. - Environmental Conditions:
Maintain room temperature (20–25°C) and humidity (40–60%). Avoid direct sunlight or extreme temperature changes. - Handling:
Always wear lint-free gloves when removing protective liners to prevent contamination and fingerprints.
