Diffuser films

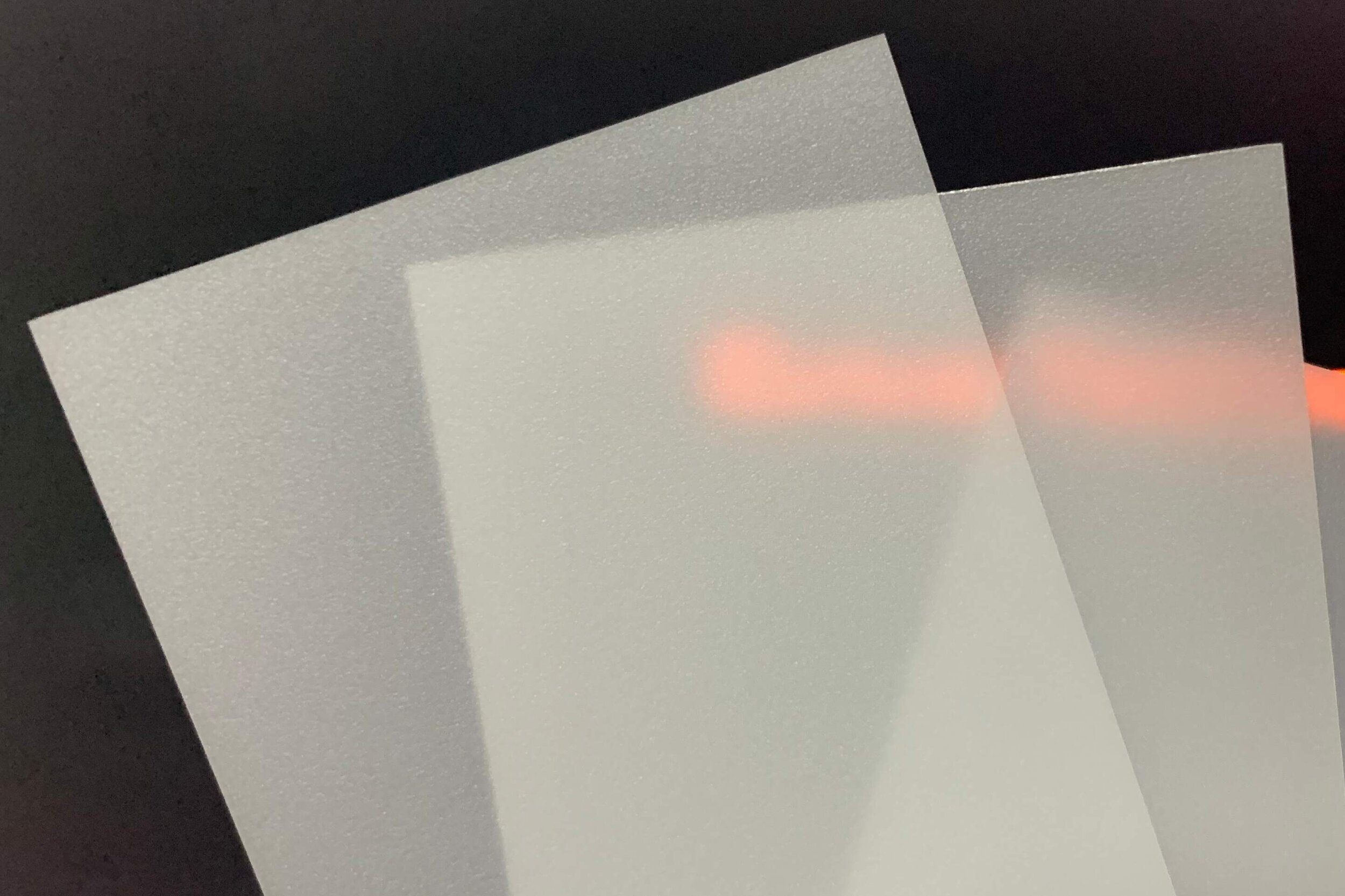

Diffuser Films are precision-engineered optical films designed to spread light evenly across LED panels, backlights, and signage systems. By controlling the direction and distribution of light, these films reduce hot spots, improve uniformity, and enhance visual comfort without compromising overall brightness.
At Hexatron Technologies, our diffuser films are made from high-quality polymer substrates and are engineered for optical consistency, durability, and easy integration. They are ideal for ultra-thin and compact lighting systems, as well as larger luminaires requiring precise light control.
Certifications
Products Comparison
| Product Code | Thickness (μm) mmin | Material | Transmittance (%) | Surface Texture | Surface | Light Diffusion | Thickness (in.) mmin |
|---|---|---|---|---|---|---|---|
| Opto50 PC500 | 500 | Polycarbonate | 50 | Matte/fine matte |  |  | 0.019 |
| Opto70 PC500 | 500 | Polycarbonate | 70 | Matte/fine matte |  |  | 0.019 |
| Opto80 PC200 | 200 | Polycarbonate | 80 | Matte/fine matte |  |  | 0.007 |
| Opto90 PC250 | 250 | Polycarbonate | 90 | Matte/fine matte |  |  | 0.009 |
| Opto90 PC500 | 500 | Polycarbonate | 90 | Matte/fine matte | 0.019 | ||
| OptoClear PC300 | 300 | Polycarbonate | 92 | Both sides Glossy | 0.0118 | ||
| OptoClear PC500 | 500 | Polycarbonate | 92 | Both sides Glossy | 0.019 | ||
| Opto60 PET100 | 100 | PET | 60 | Both sides fine matte |  |  | 0.003 |
| Opto60 PET125 | 125 | PET | 60 | Bott sides fine matte | 0.0049 | ||
| Opto65 PET225 | 225 | PET | 65 | Fine matte/ Glossy | 0.008 | ||
| Opto67 PET125 | 125 | PET | 67 | Bott sides fine matte |  |  | 0.0049 |
| Opto90 PET107 | 107 | PET | 90 | Fine matte/ Glossy |  |  | 0.0042 |
| Opto90 PET225 | 225 | PET | 90 | Fine matte/ Glossy | 0.008 | ||
| Opto90 PET250 | 500 | PET | 90 | Fine matte/ Glossy | 0.019 |
Performance Benefits
- Supports ultra-slim lighting and display designs
- Achieve uniform luminance across LED arrays
- Reduce glare and visual discomfort
- Simplify assembly by replacing multiple optical components
- Compatible with single- or multi-layer optical stacks
Applications
- LED panel lights
- Backlit displays and signage
- Architectural luminaires
- Retail and exhibition lighting
- Point-of-purchase displays
- Automotive interior lighting
More Information
Custom Cutting & Fabrication
- Precision Slitting & Rewinding: High-tolerance slitting of materials to custom dimensions, including narrow capabilities down to a minimum width of 14mm. Finished products can be supplied as coils or reels.
- High-Volume Converting: Efficient roll-to-sheet converting tailored for mass production and streamlined inventory management.
- Custom Fabrication: Precision kiss-cutting, score lines, and perforated designs engineered for easy assembly and reduced labor time.
- Specialized Thermoforming: Advanced thermoforming of Polycarbonate reflectors to achieve complex shapes and optimal light direction.
- Adhesive Application: Professional heat transfer double-sided tape mounting for secure, permanent bonding during final installation.
Value-Added Services: Sampling with complex shapes without mold fee.
Materials: Comparison of PET vs PC White Reflector Films
Use this comparison table to quickly understand the differences and find the best option for your lighting project.
| Property / Feature | PET (Polyethylene Terephthalate) White Reflector | PC (Polycarbonate) White Reflector |
|---|---|---|
| Thermal Resistance | Up to ~120 °C | Up to ~140–150 °C |
| Impact Resistance | Moderate | High |
| Chemical Resistance | Good (resists many solvents) | Good, slightly more sensitive to some solvents |
| Flexibility | Good for thin sheets | Slightly stiffer at same thickness |
| Die-cutting / punching | Easy, precise | Easy, slightly tougher |
Product Tolerances
| Property | Value |
| Thickness | ±3% |
| Cut-to-Size Length / Width | ±0.3 mm |
| Reflectance Rate | ±2% |
| Light Transmittance & Haze | ±3% |
| Light Blocking Optical Density (OD) variation | ±0.1 |
Packing
1. Standard Packing Options

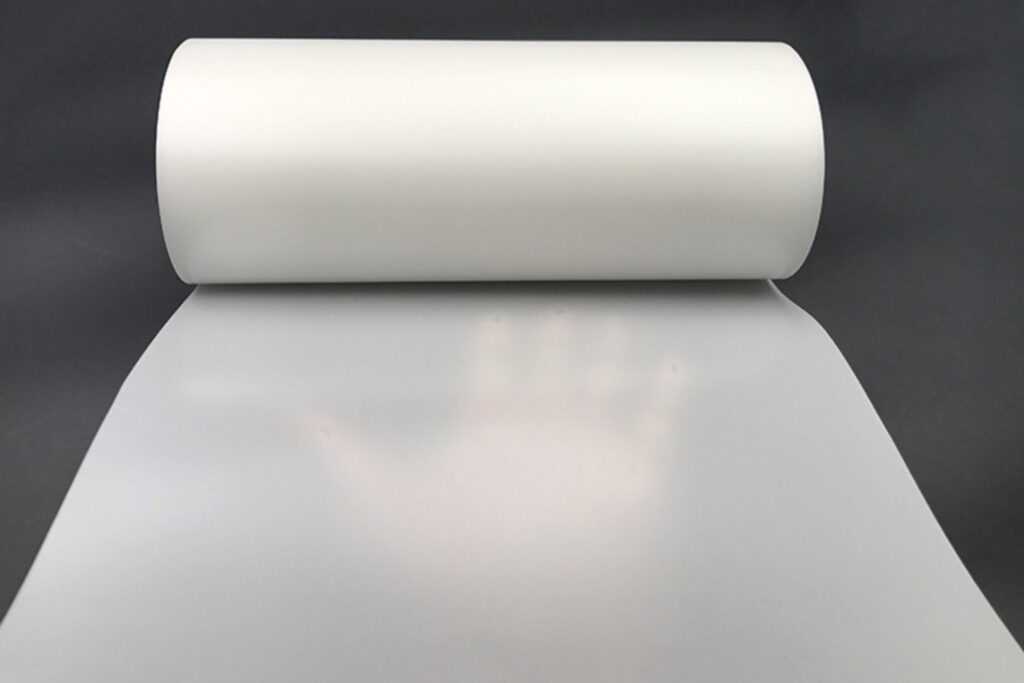

- Rolls:
Optical films are rolled on anti-static paper or plastic cores (6″) and tightly wound with protective liners to prevent telescoping and dust contamination.
Each roll is packed in a reinforced carton or crate for safe shipment. - Final Cut / Sheet Sizes:
Cut-to-size films are individually interleaved with protective films or kraft paper and stacked flat to prevent scratches, bending, or warping during transit.
2. Surface & Edge Protection
- Edge & Corner Protection:
Roll edges and sheet corners are secured with foam guards or plastic protectors to prevent damage from handling or vibration during shipping.
3. Palletization & Securing
- Rolls and flat stacks are palletized or crated.
- Straps, shrink wrap, and corner reinforcements keep materials stable throughout transit.
- Maximum pallet load: 800 kilograms or as specified per film thickness to prevent compression or deformation.
4. Shipping & Storage Recommendations
- Flat Storage:
Store cut-size films on a flat, clean surface, avoiding uneven pressure. - Roll Storage:
Store rolls upright on cores or suspended horizontally to prevent deformation and edge curling. - Environmental Conditions:
Maintain room temperature (20–25°C) and humidity (40–60%). Avoid direct sunlight or extreme temperature changes. - Handling:
Always wear lint-free gloves when removing protective liners to prevent contamination and fingerprints.
