Linear Category

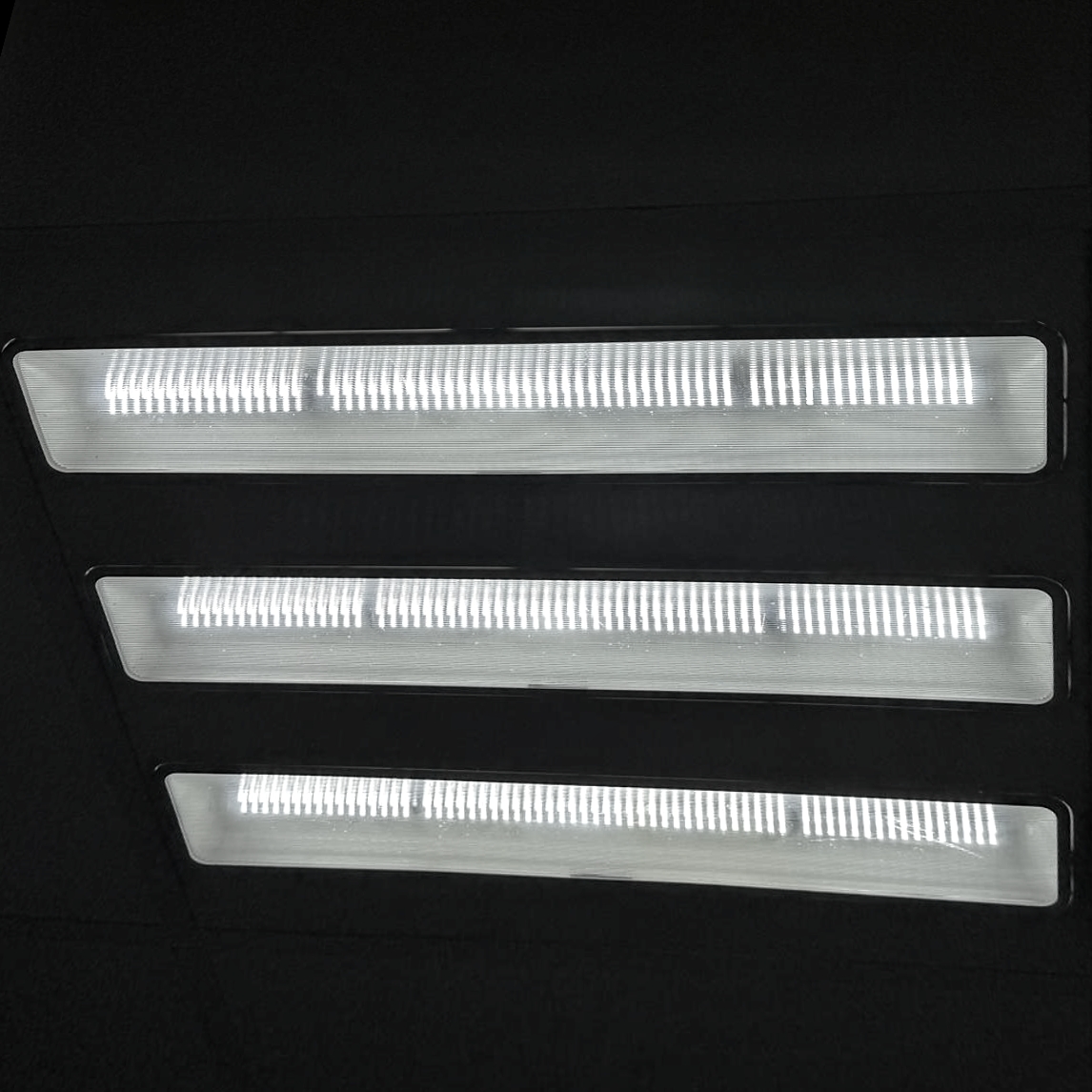

Linear prismatic optics are designed to provide directional glare control and controlled light redistribution using parallel prism structures. Unlike isotropic geometries (hexagon or honeycomb), linear prisms shape light primarily along one axis, making them especially suitable for corridor lighting, linear luminaires, wall washers, and asymmetric lighting designs.

The Linear Prismatics series enables UGR reduction, beam shaping, and luminance control while preserving high optical efficiency, making it ideal for applications where directionality and visual guidance are required.

Certifications

Request a Data Sheet or Certification

View 3D Model

Products Comparison

Product Code	Material	Light Transmission (%)	Fire Rating	Thickness Range (mm) mmin	Key Features	Applications

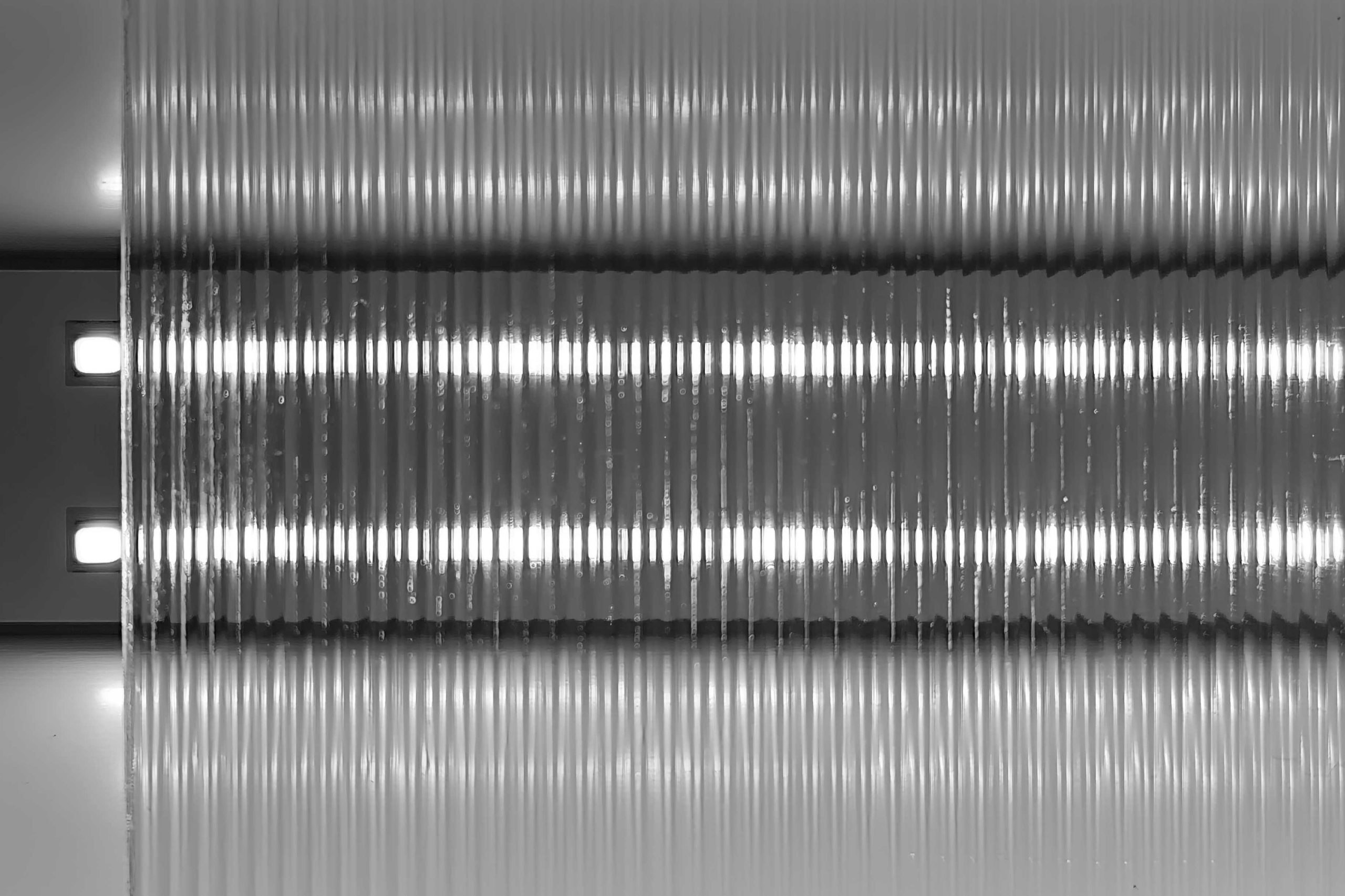

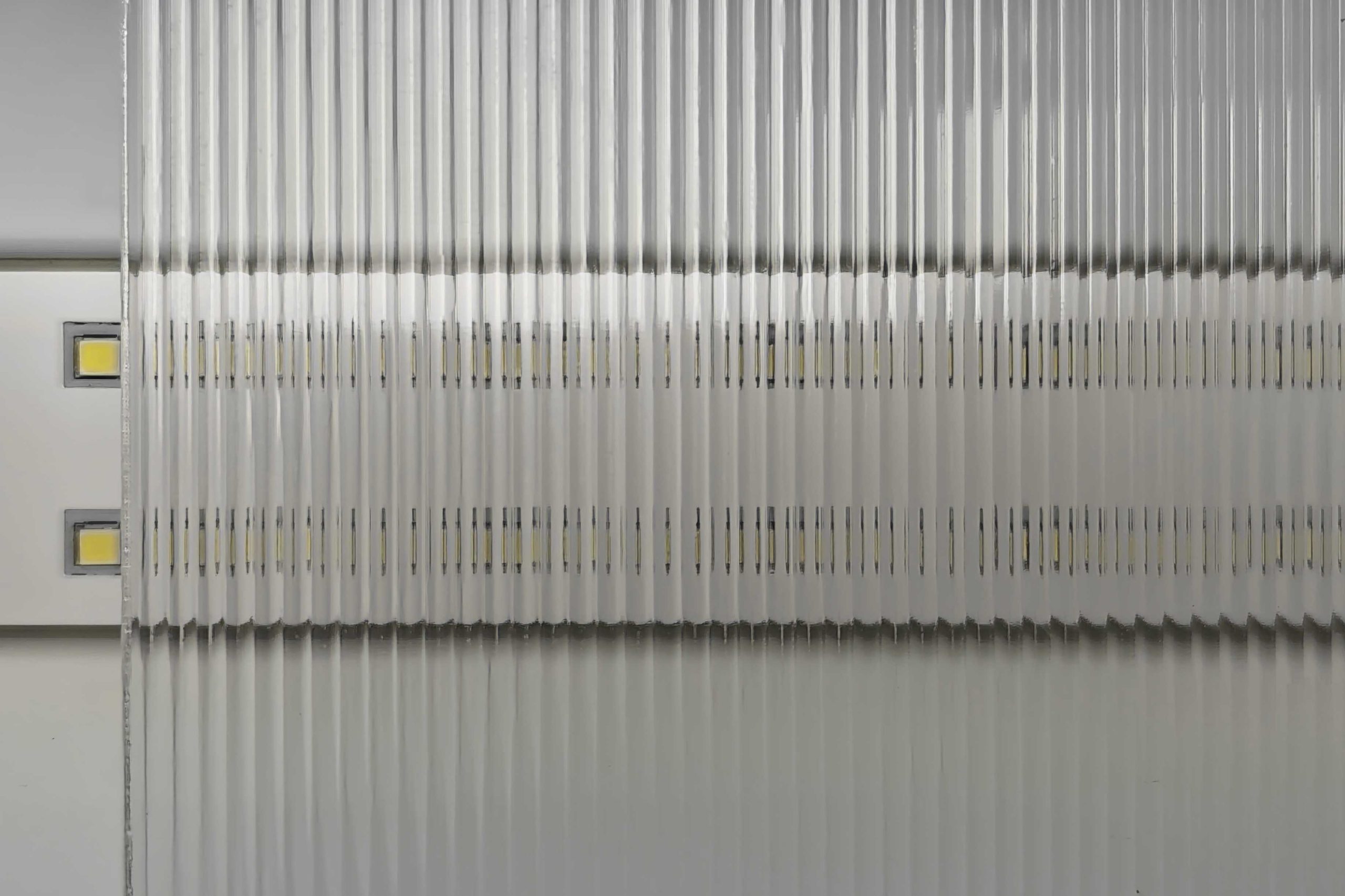

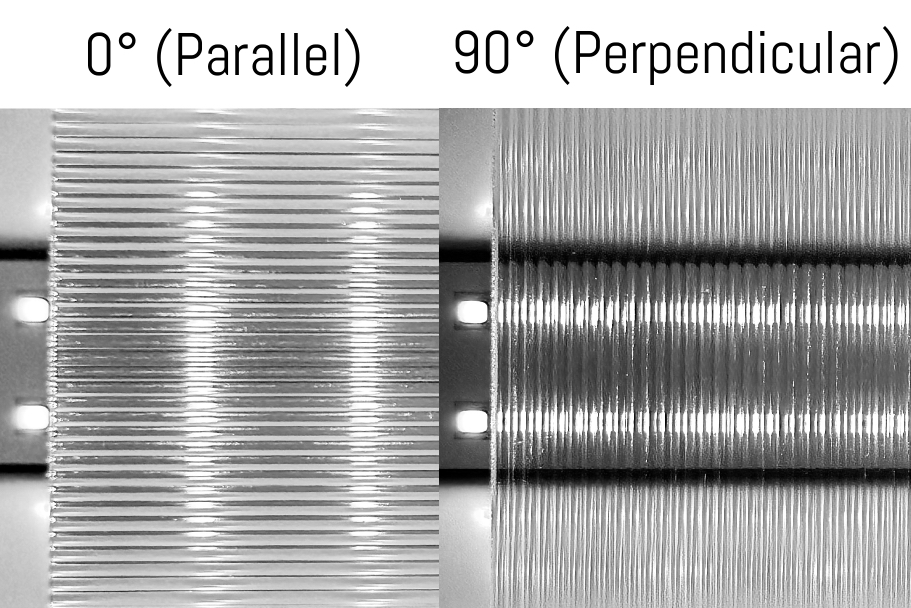

Plexi Linear	PMMA (Acrylic)	94%	UL94 HB	2	High clarity, UV-stable, durable, uniform light control	Office lighting, retail, healthcare, education

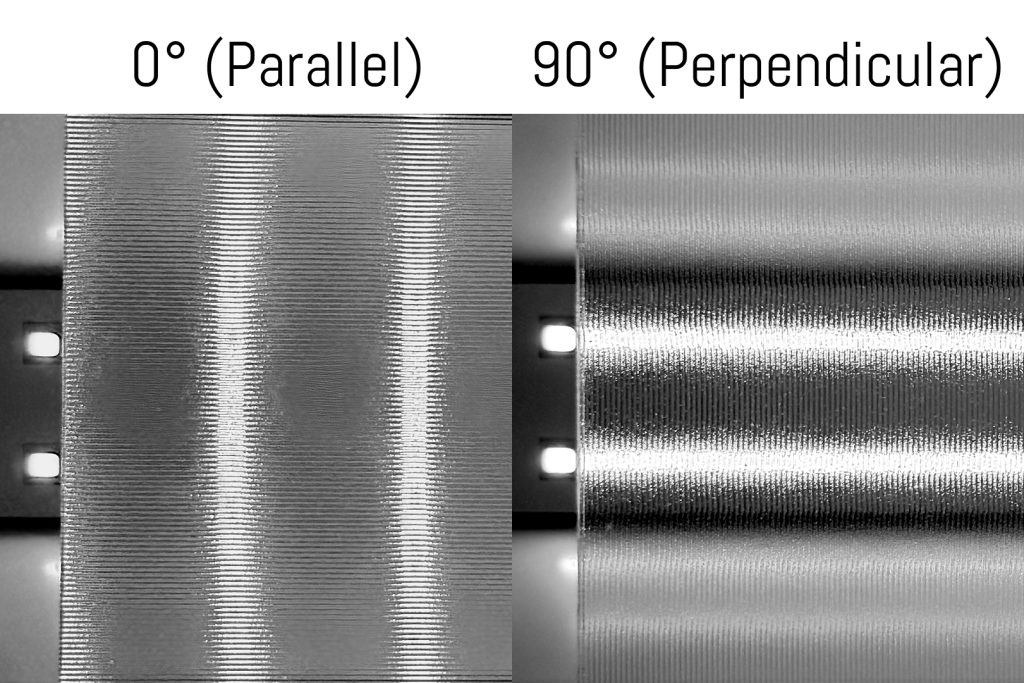

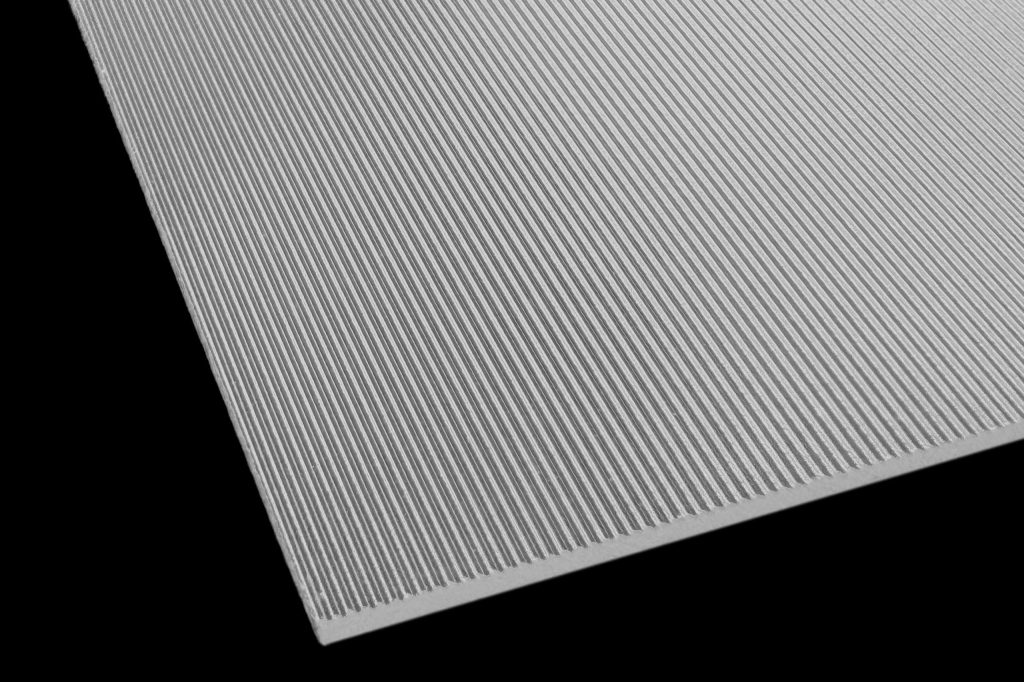

S Linear	Polystyrene (PS)	94%	UL94 HB	1.5	Lightweight, cost-effective, easy to process	Value office spaces, back-of-house areas, educational facilities

Linear Prism Geometry Benefits

Linear prism geometry consists of parallel prismatic ridges that refract and redirect light in a controlled, directional manner.

Key geometry advantages include:

Directional glare control: Suppresses high-angle luminance along the prism axis, supporting UGR control in linear installations.
Asymmetric beam shaping: Enables forward throw, wall washing, or corridor-focused distributions without additional reflectors.
High optical efficiency: Light is redirected rather than scattered, maintaining higher lumen output compared to diffusive solutions.
Reduced sparkle and controlled highlights: Smooth linear facets minimize unwanted point reflections when properly aligned with LED arrays.
Predictable photometric behavior: Ideal for designers requiring consistent and repeatable light distributions.
