Large Prisms Category
Large Prismatics are designed for superior glare control and efficient light distribution in commercial and industrial environments. With larger prism geometries, these optics deliver controlled light spread while maintaining high luminous efficacy, ideal for open-plan offices, warehouses, and retail spaces.
Certifications
Products Comparison
| Product Code | Material | Light Transmission (%) | Fire Rating | Thickness Range (mm) mmin | Key Features | Applications |
|---|---|---|---|---|---|---|

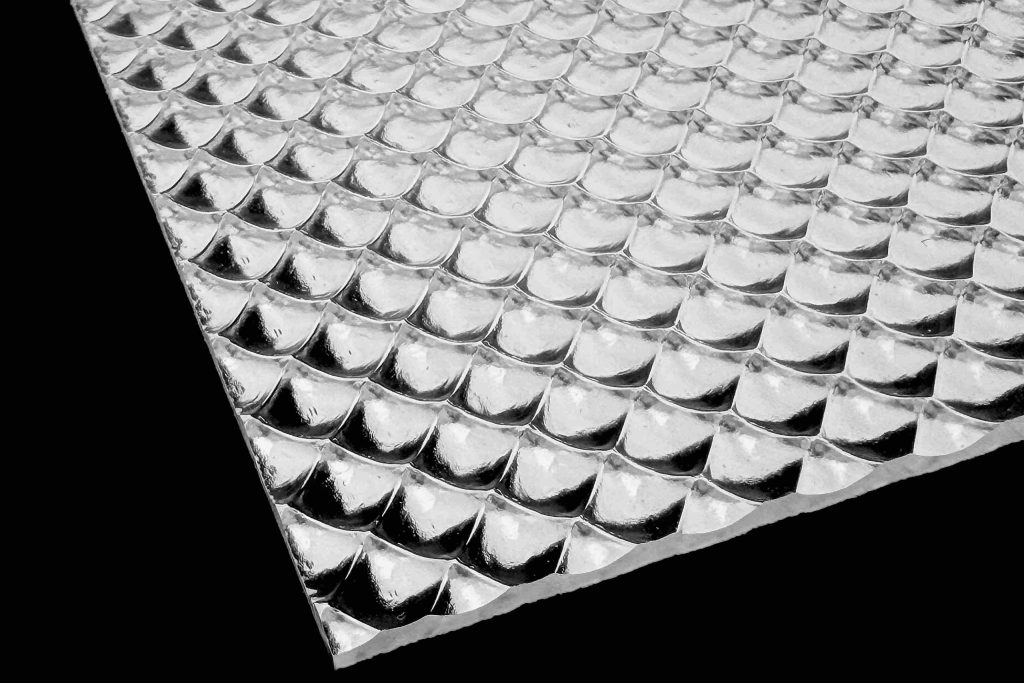

| Plexi Hexagon | PMMA (Acrylic) | 94% | UL94 HB | 1.5 & 2.0 | Premium clarity, UV-stable, UGR<19 | Offices, retail, healthcare, education |
| Poly Hexagon | Polystyrene (PS) | 90% | UL94 HB | 1.2 & 1.5 | Impact-resistant, higher fire ratings | Value office, back-of-house, education |
| S Hexagon | Polystyrene (PS) | 94% | UL94 V2/V0 | 1.2 & 1.5 | Lightweight, cost-effective, easy to process | Transit hubs, industrial, public venues |
| S Hexagon TP(a) | Polystyrene (PS TP(a)) | 94% | UL94 V2/V0 | 1.2 & 1.5 | Enhanced fire resistance vs standard PS. |
Geometry Benefits
- Large prism facets provide strong angular light control and uniform distribution.
- Effective glare suppression for UGR<19 compliance in wide-area luminaires.
- High optical efficiency due to minimal inactive surface area.
- Reduced risk of moiré patterns with LED arrays.
- Mechanically robust structure suitable for thicker optical sheets.
Applications
Related Series
Plexi Honeycomb (PMMA)
Premium clarity, UV-stable, UGR<19.
S Honeycomb (PS)
Cost-effective, lightweight performance.
PC Honeycomb (Polycarb)
Impact-resistant with higher fire ratings.
