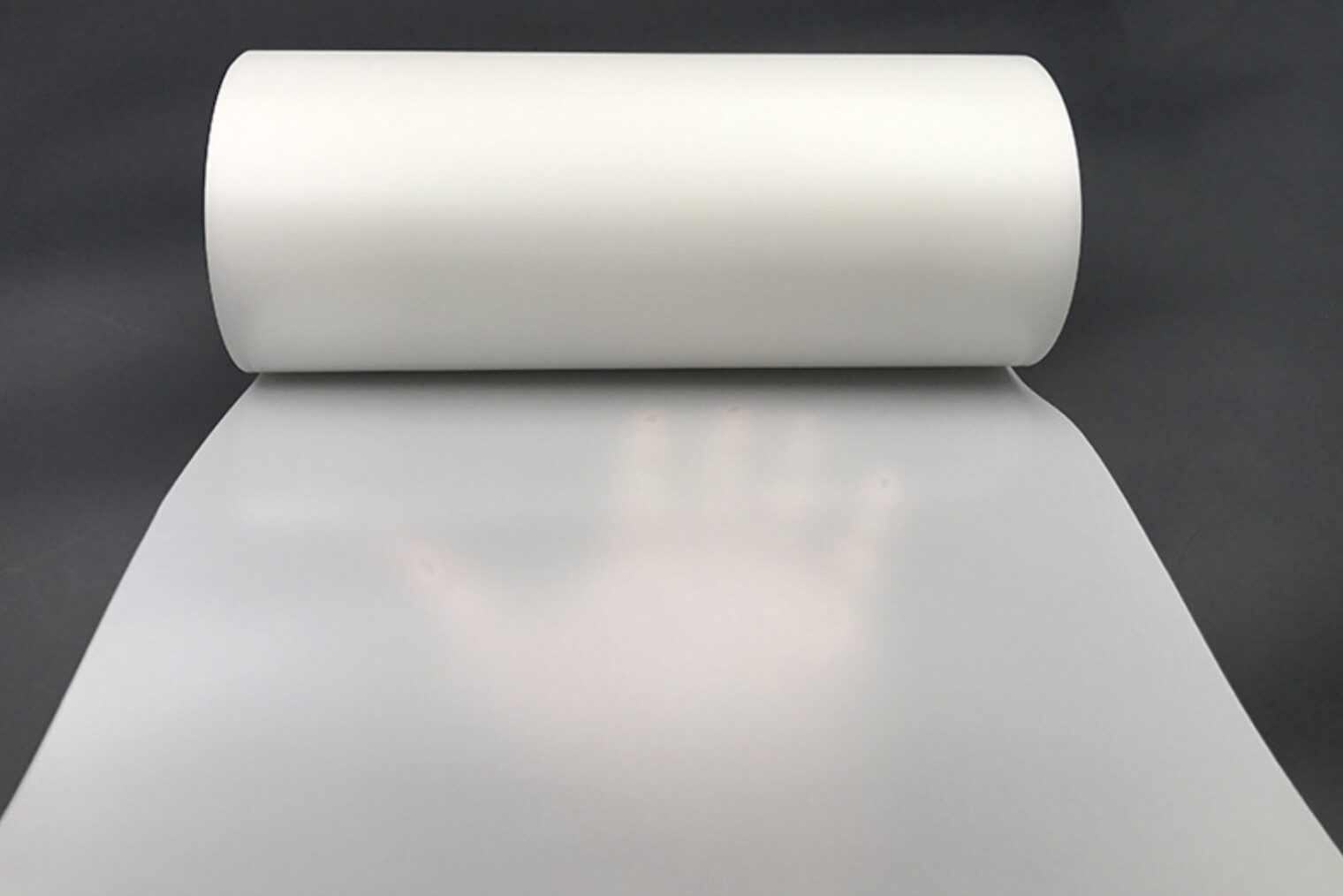

Diffuser Films
Product Details:
- Material Options: PET and Polycarbonate.
- Thickness Range: 100- 500 μm.
- Light Transmittance Range: From 50% to 90%
- Roll Sizes: Standard width: 1220 mm. Length range from 100 to 1000 meters.
- Surface: Finishes available in different frost and matte levels.
Description
Our diffuser films are designed to create smooth, even light — from opal films that eliminate LED hotspots to translucent films that offer high light transmission.
Each film combines a matte surface for scratch resistance with a fine matte side for easy printing, giving you both protection and flexibility.
We can supply the films die-cut to your drawings or in roll form for automated production. They offer excellent dimensional stability and clean, precise edges after cutting.
Typical applications include:
- Consumer electronics and smart devices
- Edge-lit and backlit LED luminaires
- Advertising lightboxes and displays
- Instrumentation panels and graphic overlays
- Automotive interior lighting
| Product Code | Material | Thickness (μm) | Thickness (in.) | Light Transmittance (%) | Surface Texture |
|---|---|---|---|---|---|
| Opto60 PC | Polycarbonate | 500 | 0.019 | 60 | Matte/fine matte |
| Opto70 PC | Polycarbonate | 500 | 0.019 | 70 | Matte/fine matte |
| Opto80 PC | Polycarbonate | 200 | 0.007 | 80 | Matte/fine matte |
| Opto90 PC250 | Polycarbonate | 250 | 0.009 | 90 | Matte/fine matte |
| Opto90 PC500 | Polycarbonate | 500 | 0.019 | 90 | Matte/fine matte |
| Opto60 PET100 | PET | 100 | 0.003 | 60 | Bott sides fine matte |
| Opto60 PET125 | PET | 125 | 0.0049 | 60 | Bott sides fine matte |
| Opto90 PET107 | PET | 107 | 0.0042 | 90 | Fine matte/ Glossy |
| Opto90 PET225 | PET | 225 | 0.008 | 90 | Fine matte/ Glossy |
| Opto90 PET250 | PET | 500 | 0.019 | 90 | Fine matte/ Glossy |

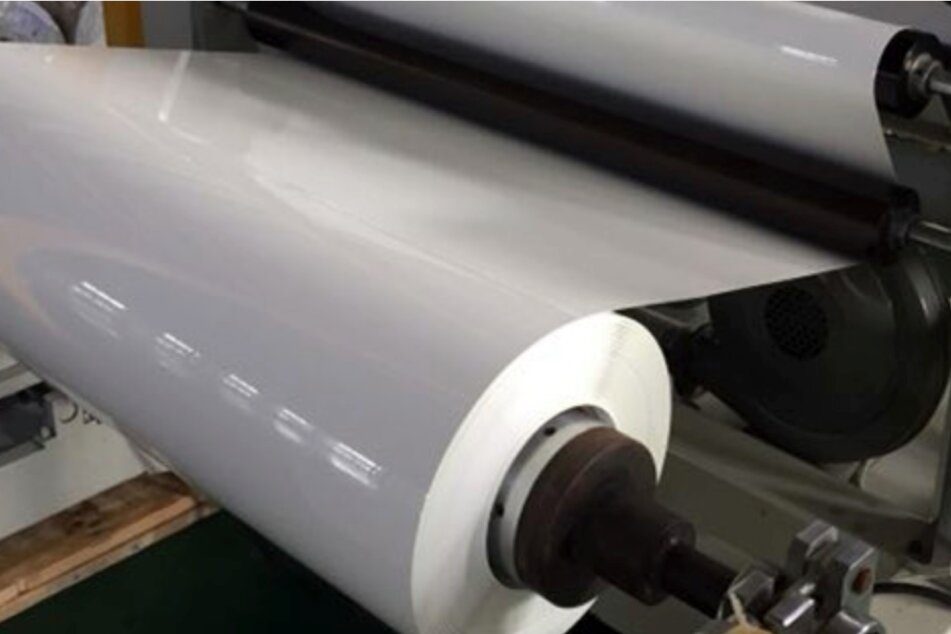

White Reflector Films
Product Details:
- Material Options: PET and Polycarbonate for thermoforming.
- Thickness Range: 100 – 500 μm.
- Roll Sizes: Standard width: 1220 mm and 1250 mm. Length range from 100 to 1000 meters.
- Surface: Gloss finish.
Description
Our reflective films offer a high reflectance rate of over 97%, ensuring bright, efficient light output. The film remains stable under UV exposure and high temperatures up to 120 °C, and is both anti-static and chemically resistant, making it reliable in demanding environments.
A special low-gloss micro-bead coating helps prevent scratches on Light Guide Plates and reduces unwanted adhesion, keeping your lighting surfaces clean and consistent.
We supply the film in roll form or custom die-cut pieces, with the option of adhesive or non-adhesive backing to fit your production needs.
Ideal for applications such as:
- Edge-lit and backlit LED luminaires
- Consumer electronics and smart devices
- Advertising lightboxes and digital displays
- Architectural and interior lighting solutions
- Emergency lighting
| Product Code | Material | Thickness (μm) | Thickness (in.) | Product Type |
|---|---|---|---|---|
| Reflex100 | PET | 100 | 0.003 | Film |
| Reflex188 | PET | 188 | 0.007 | Film |
| Reflex225 | PET | 225 | 0.008 | Film |
| Reflex300 | PET | 300 | 0.011 | Film |
| Reflex500 PET* | PET | 500 | 0.019 | Plate |
| Reflex500PC** | Polycarbonate | 500 | 0.019 | Plate |
(*) This PET reflector is designed with a unique light-blocking membrane embedded in the core of the film, effectively preventing light from passing through. This innovative feature ensures improved light control and enhanced performance for various applications.
(**) These PC white reflectors are ideal for thermoforming, offering versatility as they can be shaped into various forms. Known for their durability, they also withstand high temperatures

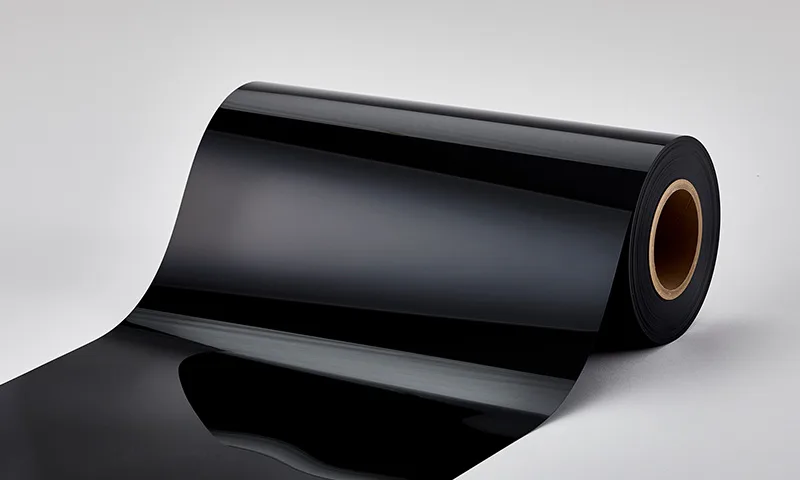

Light Blocking Films
Product Details:
- Material: Black PET
- Thickness Range: 100 – 250 μm
- Light Transmittance: 0%
- Roll Sizes: Standard width: 1000 mm and 1090 mm. Length range 100 to 1000 meters
- Surface: Matte finish
- Electrical Properties: Electrical Insulation
- Optical Properties: Light Shielding
- Additional Applications: Electrical Insulation
Description
These films are used in electronics applications requiring total light isolation. Delivers 100% light blockage across the visible spectrum, eliminating unwanted light transmission that can interfere with displays, sensors, LEDs, and imaging systems.
Made from durable, flexible PET (Polyethylene Terephthalate), it provides excellent tear resistance, easy handling, and compatibility with standard cutting tools. Available in rolls or custom-cut sizes, with or without back adhesive.
Ideal for smart devices, automotive electronics, and precision instruments.
| Product Code | Material | Thickness (μm) | Thickness (in.) | Color |
|---|---|---|---|---|
| Eclipse100 | PET | 100 | 0.003 | Black |
| Eclipse250 | PET | 250 | 0.009 | Black |
Special thicknesses are available upon request, including 50, 75, 125, 150, and 188 μm.
We offer custom cutting to any shape required, along with the option to apply a back adhesive to suit your specific applications.
More Information
Custom Cutting & Fabrication
- Die-cut or slit to specific dimensions for efficient integration into backlight units or luminaires.
- Roll-to-sheet converting for mass production.
- Kiss-cut, score lines and perforated designs for easy assembly.
- Thermoforming of Polycarbonate reflectors.
- Double-Sided Tape Mounting.
Value-Added Services: Sampling with complex shapes without mold fee.
Materials: Comparison of PMMA, PC, and PS
Use this comparison table to quickly understand the differences and find the best option for your lighting project.
| Property / Feature | PMMA (Acrylic) | PC (Polycarbonate) | PS (Polystyrene) |
|---|---|---|---|
| Light Transmission | Very high | High | High |
| Impact Resistance | Low – brittle, can crack under stress | Very high – shatter-resistant | Low – brittle |
| Heat Resistance (Continuous Use) | 80–90°C | 120°C | 70°C |
| Maximum Short-Term Heat | ~100°C | ~135°C | ~80°C |
| UV Resistance / Weathering | Good (can yellow over long-term) | Moderate UV stability (However we add UV stabilizer) | Fair (Prone to yellowing)However we add UV stabilizer. |
| Flammability / Safety | Moderate (UL94 HB) | Better (UL94 V-2/V-0 with additives) | Moderate (UL94 HB) |
| Chemical Resistance | Good (resistant to mild acids/alkalis) | Excellent – resists most chemicals | Poor – sensitive to solvents |
| Weight / Density | 1.18 g/cm³ | 1.2 g/cm³ | 1.05 g/cm³ |
| Processing / Fabrication | Thermoforming, laser cutting, CNC. | Good for thermoforming, no laser cutting, CNC. | CNC. |
| Cost | Medium | High | Low |
| Durability / Lifespan | Moderate – good indoor use | Very high – suitable for harsh/industrial environments | Fair – medium-term indoor use |
| Common Applications | Office LED panels | Industrial/warehouse lighting, outdoor luminaires, impact-prone areas | Cost sensitive projects |
Product Tolerances
| Property | Value |
| Thickness | ±3% |
| Cut-to-Size Length / Width | ±0.3 mm |
| Reflectance Rate | ±2% |
| Light Transmittance & Haze | ±3% |
| Light Blocking Optical Density (OD) variation | ±0.1 |
Packing
1. Standard Packing Options
- Rolls:
Optical films are rolled on anti-static paper or plastic cores (6″) and tightly wound with protective liners to prevent telescoping and dust contamination.
Each roll is packed in a reinforced carton or crate for safe shipment. - Final Cut / Sheet Sizes:
Cut-to-size films are individually interleaved with protective films or kraft paper and stacked flat to prevent scratches, bending, or warping during transit.
2. Surface & Edge Protection
- Edge & Corner Protection:
Roll edges and sheet corners are secured with foam guards or plastic protectors to prevent damage from handling or vibration during shipping.
3. Palletization & Securing
- Rolls and flat stacks are palletized or crated.
- Straps, shrink wrap, and corner reinforcements keep materials stable throughout transit.
- Maximum pallet load: 800 kilograms or as specified per film thickness to prevent compression or deformation.
4. Shipping & Storage Recommendations
- Flat Storage:
Store cut-size films on a flat, clean surface, avoiding uneven pressure. - Roll Storage:
Store rolls upright on cores or suspended horizontally to prevent deformation and edge curling. - Environmental Conditions:
Maintain room temperature (20–25°C) and humidity (40–60%). Avoid direct sunlight or extreme temperature changes. - Handling:
Always wear lint-free gloves when removing protective liners to prevent contamination and fingerprints.
