MiniHexa

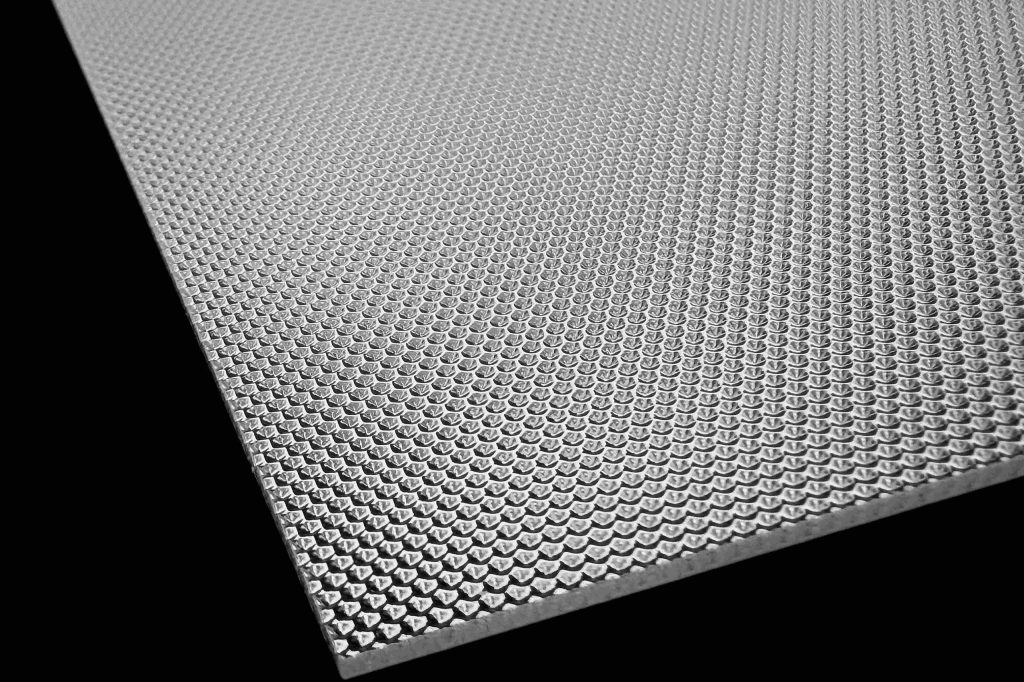

The MiniHexa Series features concave mini hexagonal microprisms, engineered for advanced glare suppression and visual comfort in compact and high-luminance LED luminaires.
By reducing individual prism cell size and utilizing a concave geometry, MiniHexa optics provide refined luminance control, smoother visual appearance, and improved performance with dense LED arrays.
Available in PMMA (Acrylic) and Polycarbonate (PC), the MiniHexa Series is optimized for applications requiring UGR<19 compliance, minimal sparkle, and enhanced compatibility with short LED-to-optic distances.
Certifications
Products Comparison
| Product Code | Material | Thickness mmin | Light Transmission | Fire Rating | Key Features | Thickness in mmin |
|---|---|---|---|---|---|---|
| Plexi MiniHexa | Acrylic (PMMA) | 1.5 | 94% | UL94 HB | High clarity, UV-stable | |
| Poly MiniHexa | Polycarbonate (PC) | 1.2 | 90% | UL94 HB | Impact-resistant, fire-rated. |

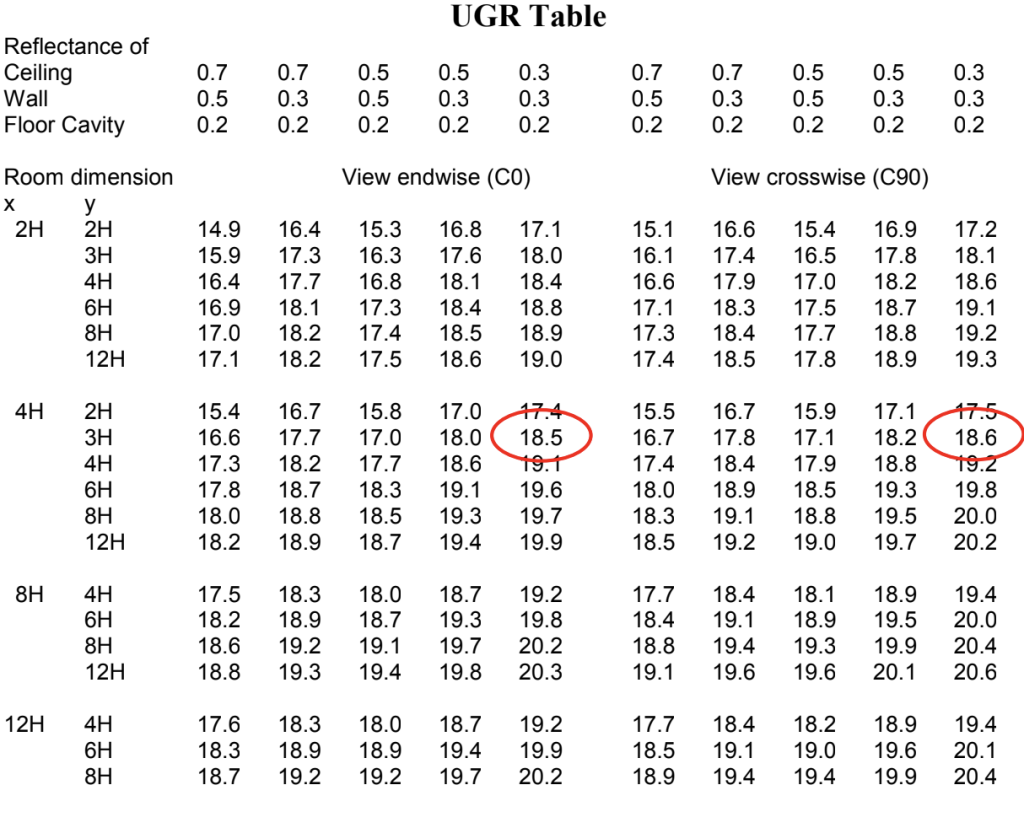

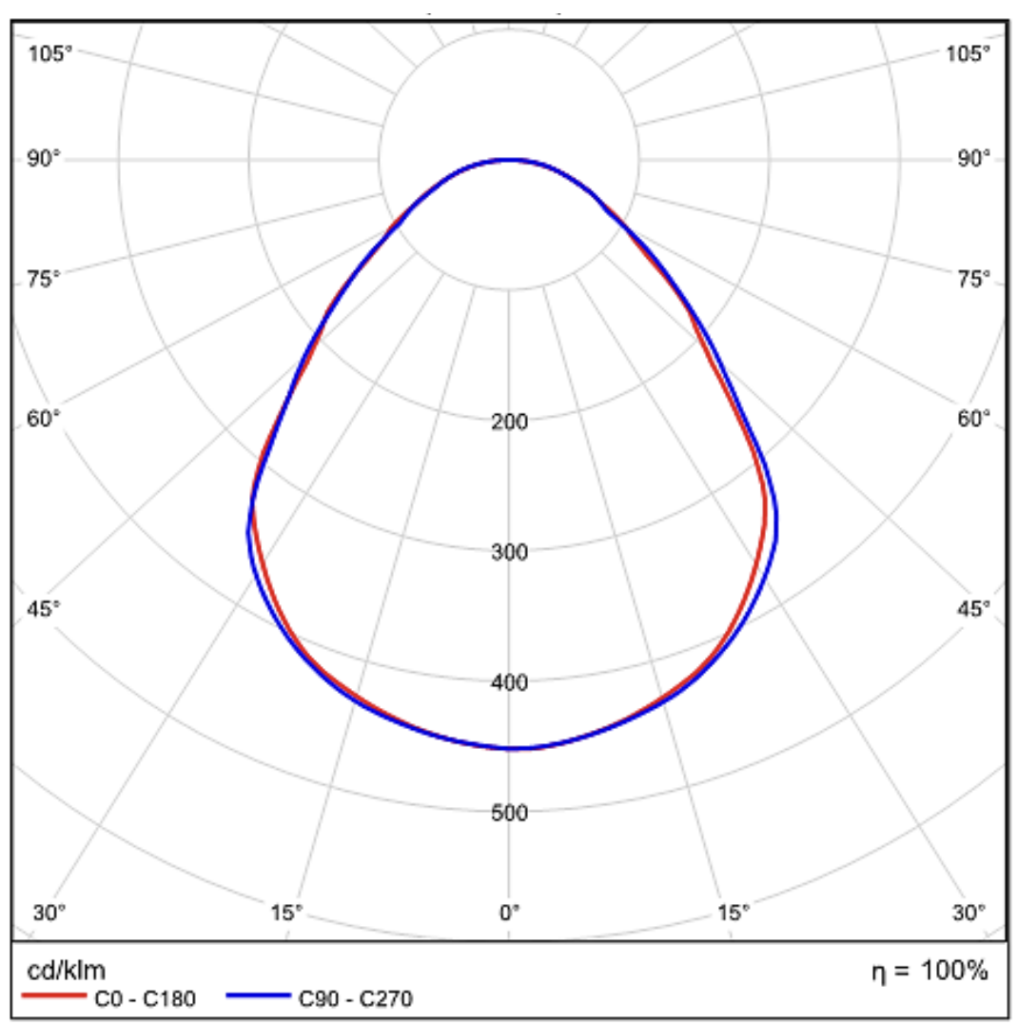

Photometric Data
Mini Hexagon Geometry Benefits
The concave mini hexagonal prism geometry enables precise control of high-angle luminance while maintaining uniform brightness across the emitting surface.
Key geometric advantages:
- Concave micro-facets reduce direct glare at critical viewing angles
- Miniaturized hexagonal cells improve luminance smoothness and reduce visible prism patterning
- Isotropic light control ensures a uniform appearance from multiple viewing directions
- Enhanced LED pitch tolerance, ideal for dense and high-power LED arrays
- Lower sparkle and facet visibility compared to larger convex prism structures
- High optical efficiency with controlled refraction rather than diffuse scattering
This geometry is especially effective where visual comfort and refined aesthetics are critical.

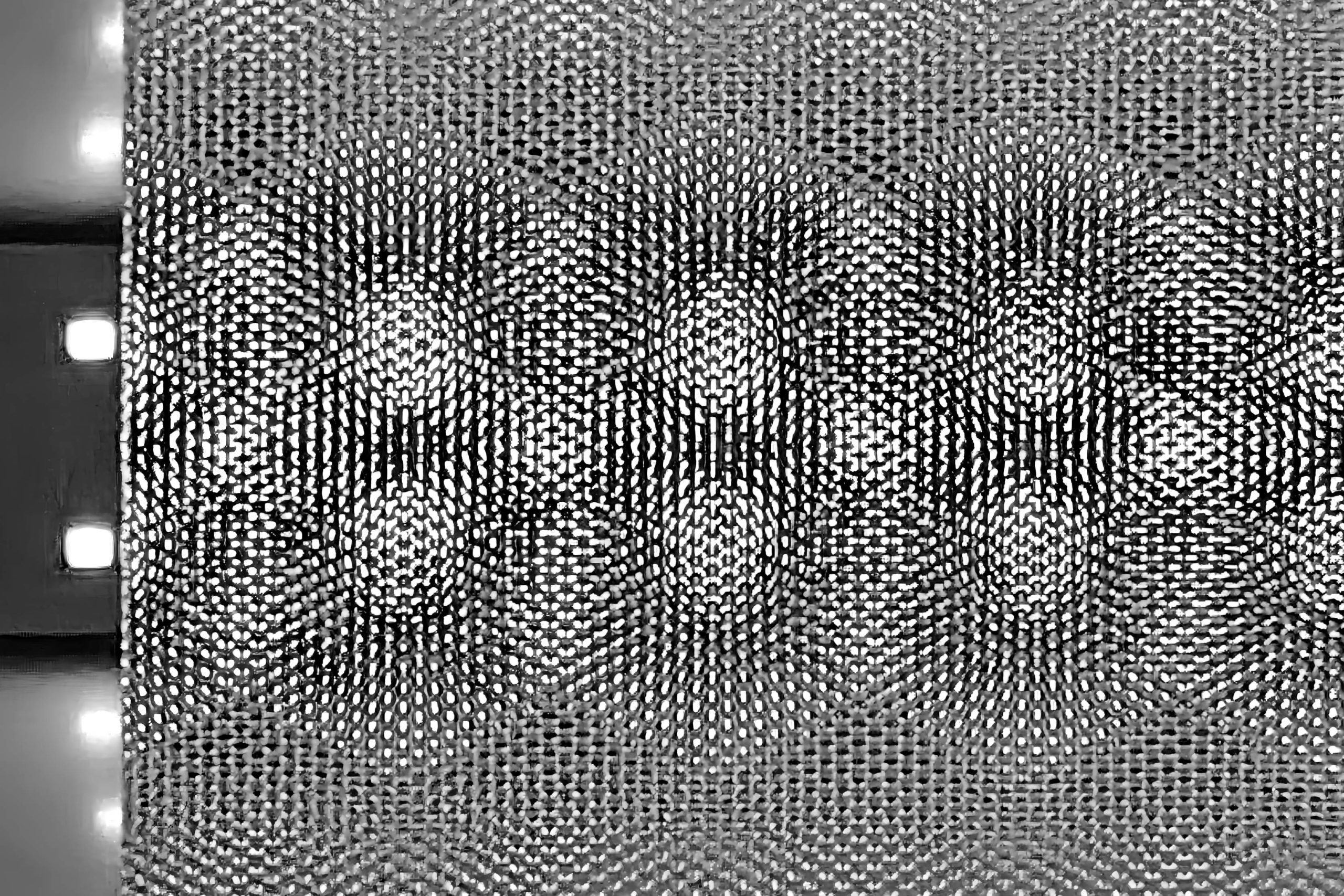

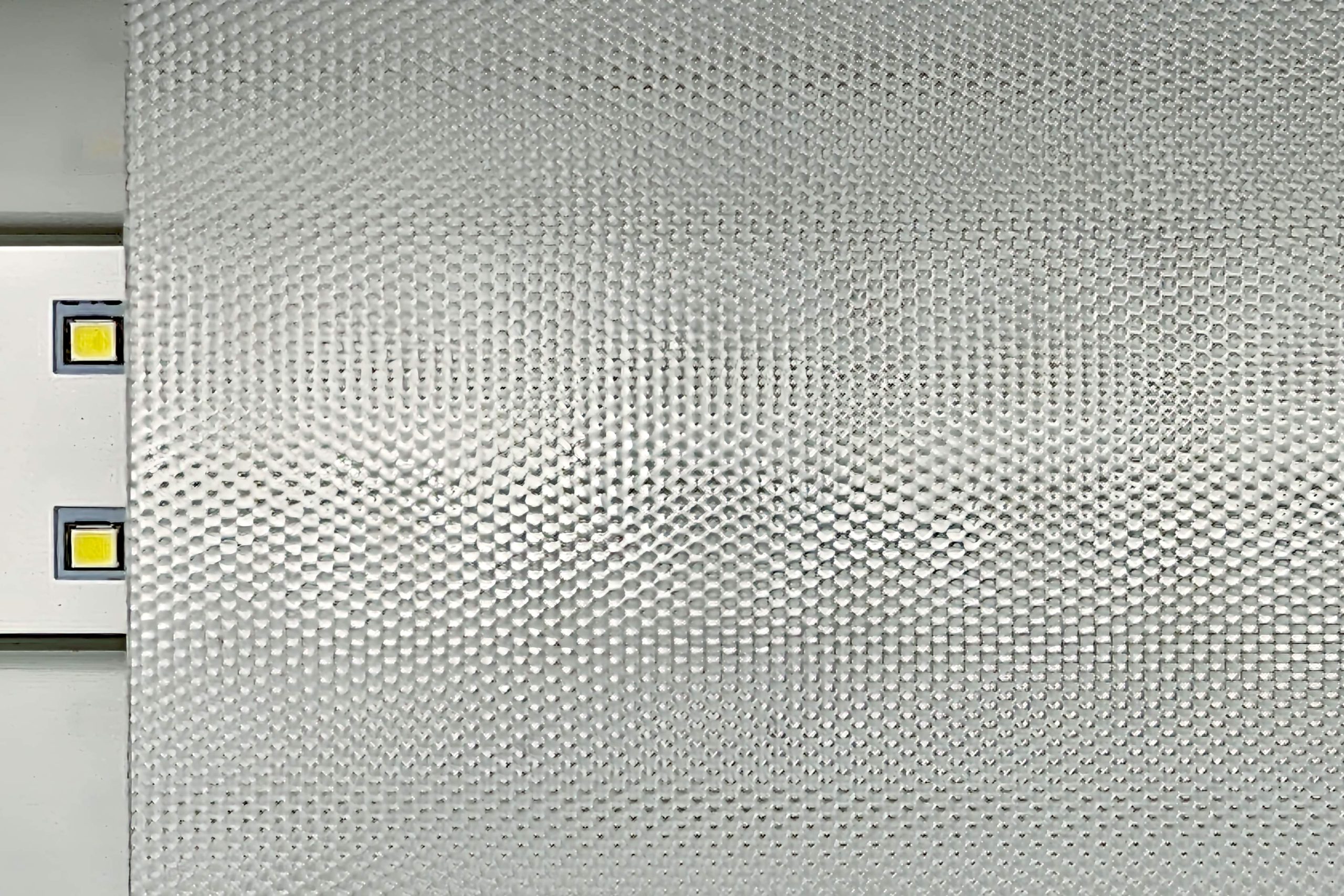

Before and After

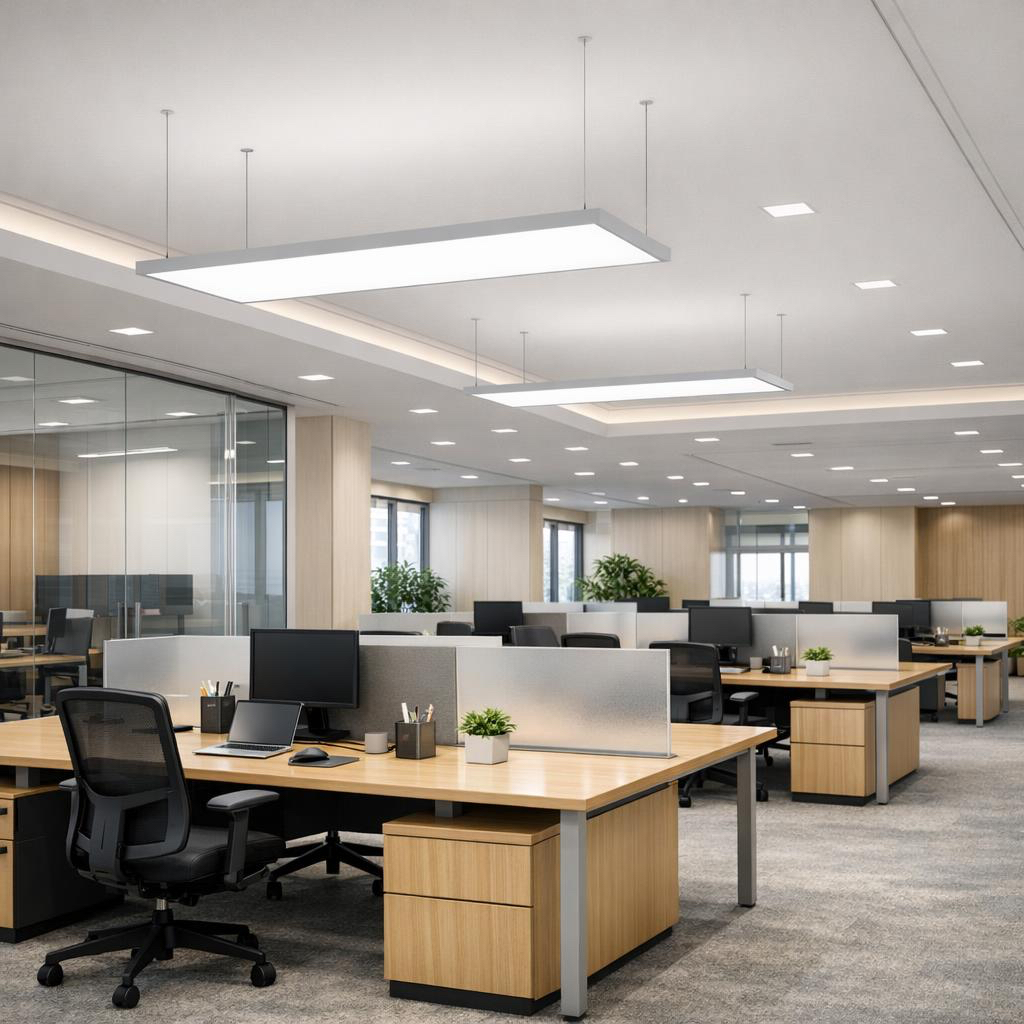

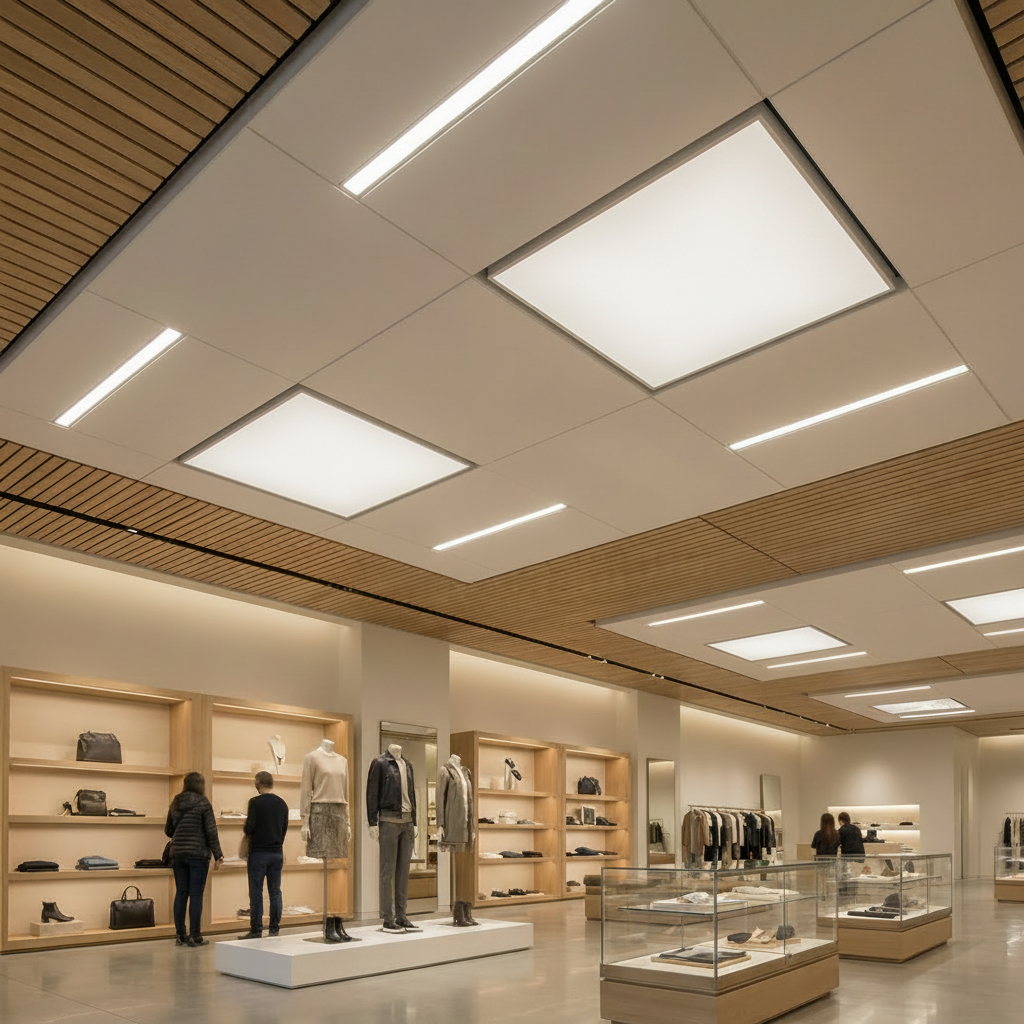

Applications
